0850421079

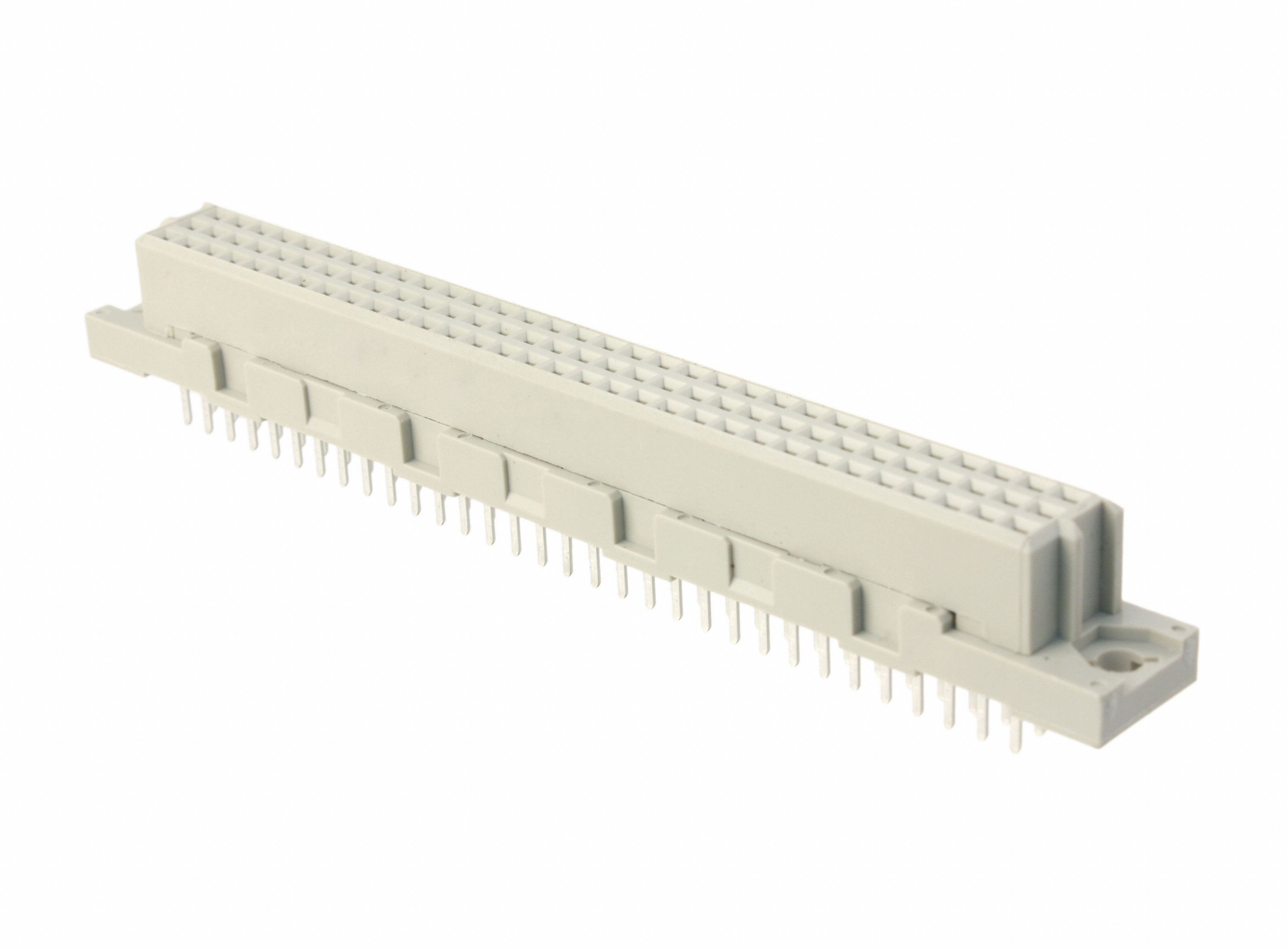

2.54毫米（ .100“ ）间距DIN 41612插座，样式C， 96电路 2.54mm .100" Pitch DIN 41612 Receptacle, Style C, 96 Circuits

96 针位 DIN 插座，母型插口 镀金 通孔

得捷:
CONN DIN RCPT 96POS PCB GOLD

立创商城:
0850421079

艾睿:
The din 41612 0850421079 backplane connector, developed by Molex, can provide you with a much faster transfer rate as opposed to other types of connectors. This F connector&s;s 96 contacts that are made out of copper alloy. This is a 3-row connector. Its pitch is 2.54 mm. It has a female type gender. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 95 mm long, 11.6 mm tall and 10.5 mm deep. 0850421079 is housed in polyester.

安富利:
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole Tray
