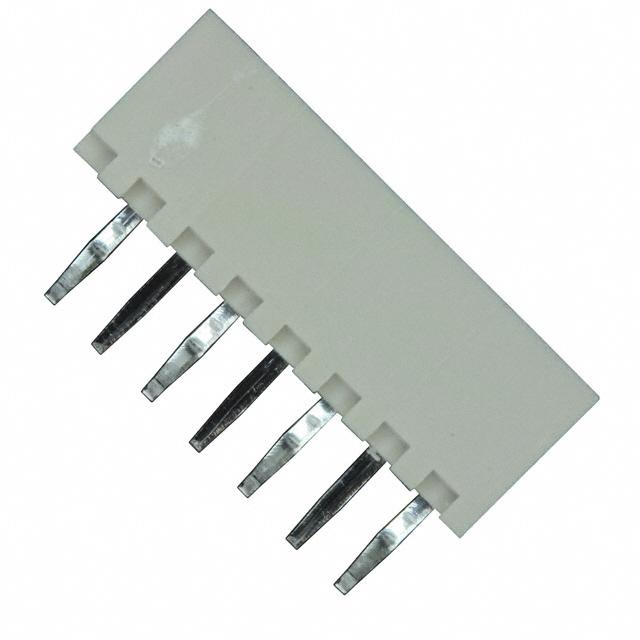

2.00毫米（ .079 “ ）间距MicroBlade ™线对板头，垂直， 7电路 2.00mm .079" Pitch MicroBlade™ Wire-to-Board Header, Vertical, 7 Circuits
针座 通孔 7 位置 0.079"（2.00mm）
得捷:
CONN HEADER VERT 7POS 2MM
艾睿:
Reduce safety concerns with this shrouded 0530140710 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 7 contacts that are made out of phosphor bronze and plated with pre-tin. This is a 1-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 2 mm. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 2 A/contact. This product is 16 mm long, 5.85 mm tall and 4.35 mm deep. This connector has an operating temperature of -20 to 85 °C. 0530140710 is housed in natural nylon 6/6. It uses the solder termination method.
安富利:
Conn Shrouded Header HDR 7 POS 2mm Solder ST Thru-Hole Bag
Verical:
Conn Shrouded Header 4 Sides HDR 7 POS 2mm Solder ST Thru-Hole MicroBlade™ Bag
