0050579204概述

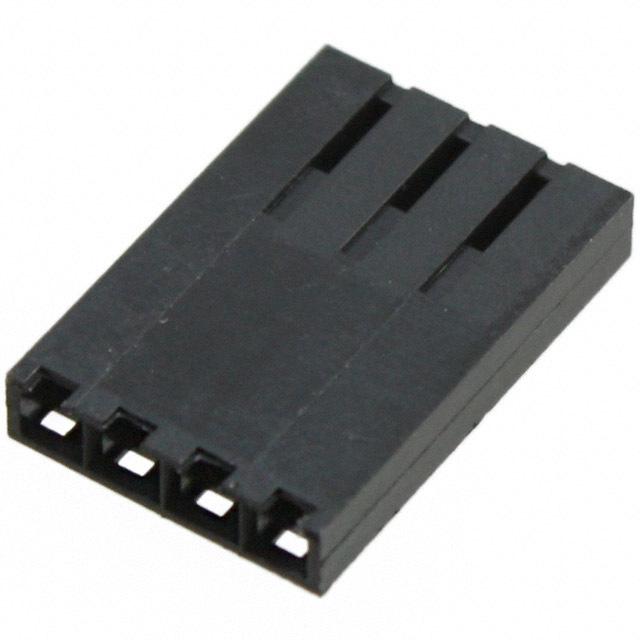

2.54毫米( .100“ )间距SL ™压接房,单列, C型,前肋条, 4电路 2.54mm .100" Pitch SL™ Crimp Housing, Single Row, Version C, Front Ribs, 4 Circuits

Ensure a complete connection between two different circuit boards is made using "s discrete wire housing. This F connector has 4 F contacts. It has a maximum voltage rating of 250 V. It has a female type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -40 to 105 °C. This product is 10.13 mm long, 3.53 mm tall and 15.24 mm deep. 0050579204 is housed in black polyester.

0050579204中文资料参数规格
技术参数

触点数 4

极性 Female

排数 1

针脚数 4

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 250 V

外形尺寸

高度 15.24 mm

物理参数

外壳颜色 Black

颜色 Black

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0050579204
型号: 0050579204
制造商: Molex 莫仕
描述:2.54毫米( .100“ )间距SL ™压接房,单列, C型,前肋条, 4电路 2.54mm .100" Pitch SL™ Crimp Housing, Single Row, Version C, Front Ribs, 4 Circuits
替代型号0050579204
型号/品牌 代替类型 替代型号对比

0050579204

Molex 莫仕

当前型号

当前型号

926475-4

泰科

功能相似

0050579204和926475-4的区别

925369-4

泰科

功能相似

0050579204和925369-4的区别
