0022022035

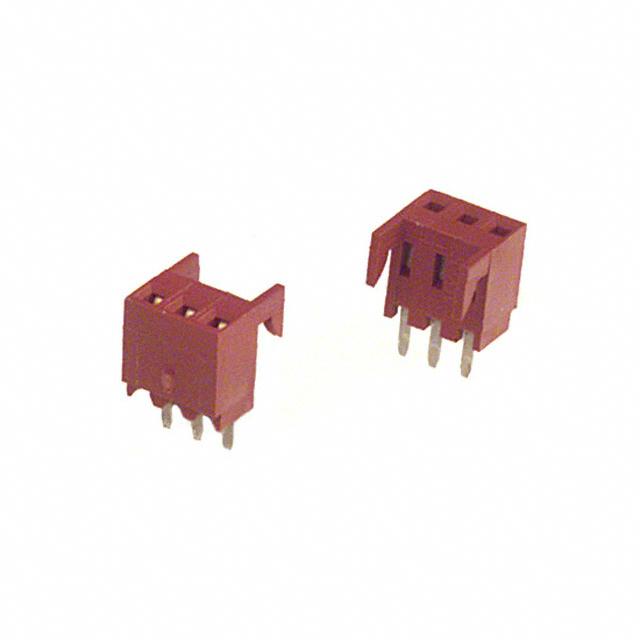

2.54毫米（ .100 ）间距KK® PC板连接器，顶面入口，与猫耳端子， 2.54μm （ 100μ ），锡（Sn ） ，3个电路，用钩子 2.54mm .100 Pitch KK® PC Board Connector, Top Entry, with Cat Ear Terminal, 2.54μm 100μ Tin Sn, 3 Circuits, With Hooks

3 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 3POS 0.1 TIN PCB

艾睿:

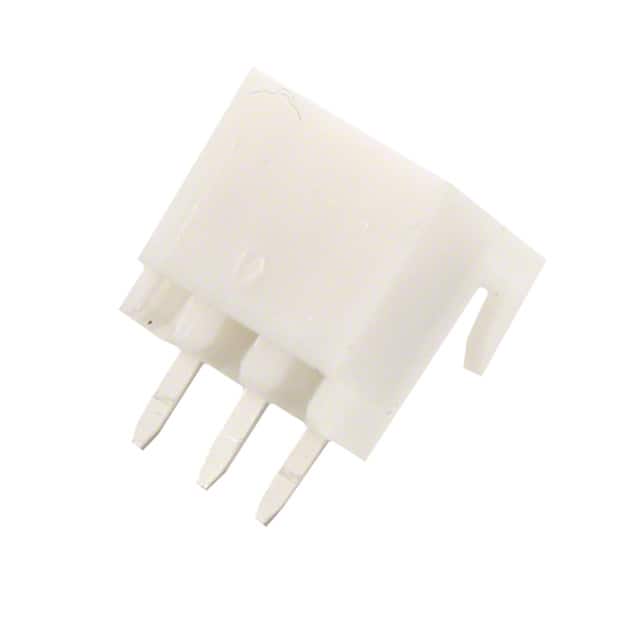

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 0022022035 header connector from Molex. This RCP connector&s;s 3 contacts that are made out of brass and plated with tin. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. It has a straight body orientation. It has a receptacle type gender. This is a 1-row connector. This device has a maximum current rating of 2.5 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0022022035 is housed in white nylon. This product is 7.52 mm long, 7.9 mm tall and 7.7 mm deep.

安富利:
Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole KK® Tray
