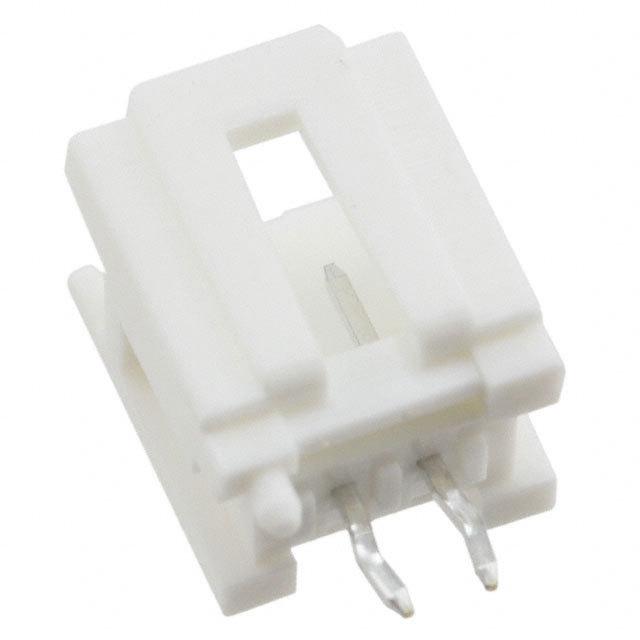

2.00毫米（ .079 “ ）间距MicroClasp ™线对板头，单列，立式， 2Circuits ，与PCB定位器 2.00mm .079" Pitch MicroClasp™ Wire-to-Board Header, Single Row, Vertical, 2Circuits, with PCB Locator
Connector Header Through Hole 2 position 0.079" 2.00mm
得捷:
CONN HEADER VERT 2POS 2MM
艾睿:
Molex&s;s shrouded 0559320210 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector has 2 contacts that are plated with tin over nickel. This is a 1-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2 mm. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This product is 8 mm long, 9.75 mm tall and 6.7 mm deep. This connector has an operating temperature of -25 to 85 °C. 0559320210 is housed in natural polyester.
Verical:
Conn Shrouded Header 4 Sides HDR 2 POS 2mm Solder ST Thru-Hole MicroClasp™ Tray
