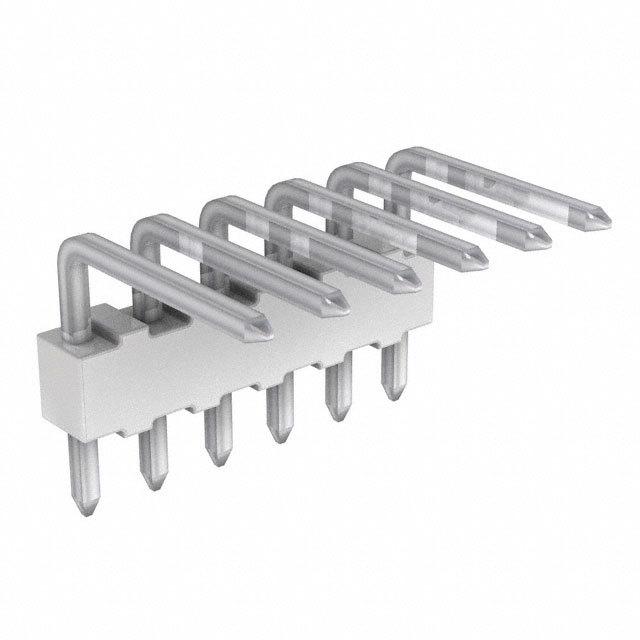

2.54毫米（ .100 ）间距KK®线对板头，单排，直角， 6电路，PA聚酰胺尼龙，锡（Sn ）镀层 2.54mm .100 Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 6 Circuits, PA Polyamide Nylon, Tin Sn Plating
Connector Header Through Hole, Right Angle 6 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 6POS 2.54MM
艾睿:
Look no further than the unshrouded 0022052061 header connector from Molex, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 6 contacts that are made out of brass and plated with tin over copper. It has a header type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. 0022052061 is housed in white nylon. This product is 14.99 mm long, 6.3 mm tall and 9.89 mm deep. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Bulk
Verical:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Side Entry Thru-Hole KK® Bag
