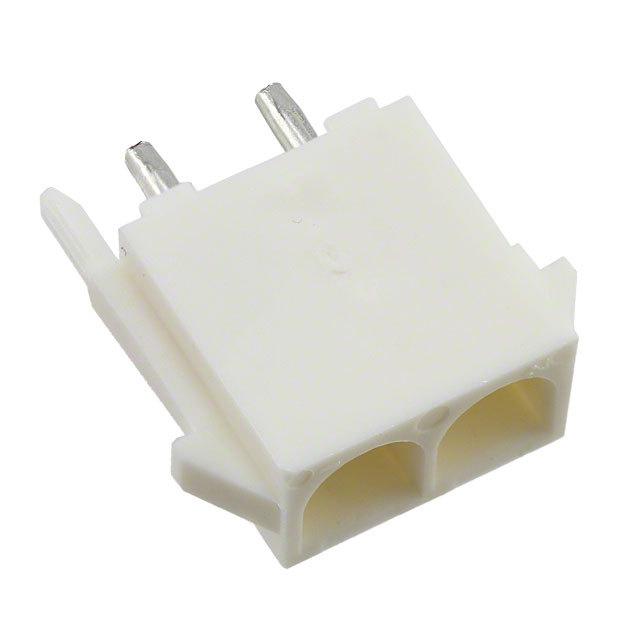

6.35毫米（ .250“ ）间距MLX ™电源连接头，垂直，用塑料偏光PEG， 2个电路 6.35mm .250" Pitch MLX™ Power Connector Header, Vertical, with Plastic Polarizing Peg, 2 Circuits
Connector Header Through Hole 2 position 0.250" 6.35mm
得捷:
CONN HEADER VERT 2POS 6.35MM
艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 0432550059 power connector from Molex for a secure connection! This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin. This connector has a single port. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 V. Its pitch is 6.35 mm. This device has a maximum current rating of 20 A/contact. 0432550059 is housed in polyester. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 13.97 mm long, 13.97 mm tall and 7.62 mm deep. This power connector has an operating temperature range of -55 °C to 105 °C. Its 2 terminals use the solder termination method.
安富利:
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Bag
Chip1Stop:
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Bag
Verical:
Conn Wire to Board HDR 2 POS 6.35mm Solder ST Thru-Hole MLX™ Tray
