AVX 06032C102KAT2A 多层陶瓷电容器, 表面贴装, 1000 pF, ± 10%, X7R, 200 V, 0603 [1608 公制]

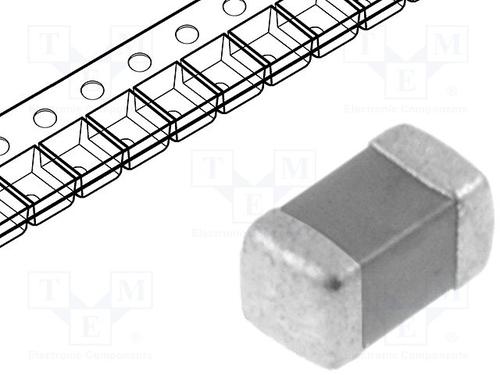

The is a surface-mount SMT Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X7R formulations are called temperature stable ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55 to 125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. The X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
额定电压DC 200 V
工作电压 200 V
绝缘电阻 100 GΩ
电容 1000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V

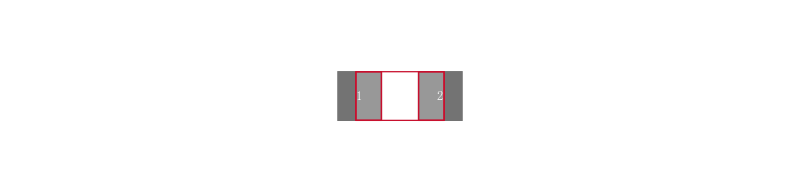

安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.60 mm
宽度 810 µm
高度 0.9 mm
封装公制 1608
封装 0603
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
06032C102KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
06032C102JAT2A 艾维克斯 | 类似代替 | 06032C102KAT2A和06032C102JAT2A的区别 |
06032C102K4T2A 艾维克斯 | 类似代替 | 06032C102KAT2A和06032C102K4T2A的区别 |
LD032C102KAB2A 艾维克斯 | 类似代替 | 06032C102KAT2A和LD032C102KAB2A的区别 |
