0190030044

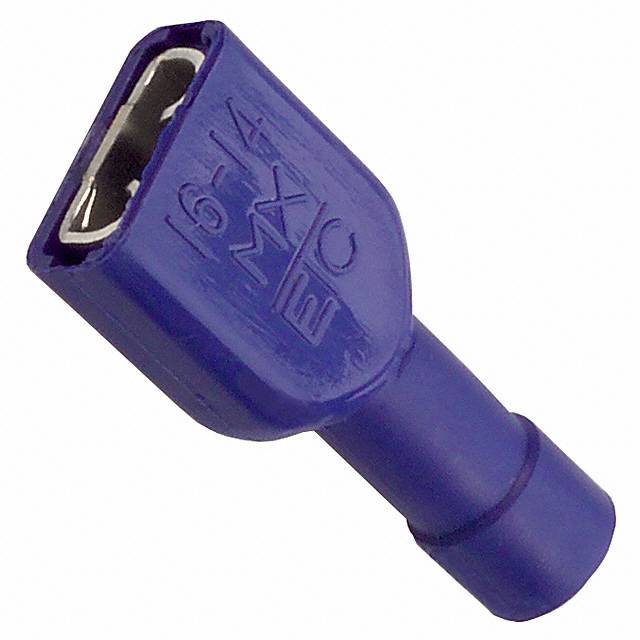

0190030044图片1
0190030044图片2
0190030044图片3
0190030044图片4
0190030044概述

InsulKrimp ™快速断开,女,盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, Box, Tab 6.35mm .250" x 0.81mm .032"

0.250"(6.35mm) 快速连接 母头 14-16 AWG 压接 完全绝缘


得捷:
CONN QC RCPT 14-16AWG 0.250


艾睿:
The quick disconnect terminal 0190030044 wire terminal from Molex makes it simple to connect to your terminals. It has a female type gender. Its wire is 14-16 AWG. This wire terminal has an operating temperature of -65 to 105 °C. This product is 21.84 mm long and 9.65 mm.


Chip1Stop:
Quick Disconnect Terminal 14-16AWG F 21.84mm 9.65mm Tin Box


0190030044中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 16AWG

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 600 V

外形尺寸

长度 21.84 mm

宽度 9.65 mm

物理参数

颜色 Blue

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0190030044
型号: 0190030044
制造商: Molex 莫仕
描述:InsulKrimp ™快速断开,女,盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, Box, Tab 6.35mm .250" x 0.81mm .032"
替代型号0190030044
型号/品牌 代替类型 替代型号对比

0190030044

Molex 莫仕

当前型号

当前型号

0190030045

莫仕

完全替代

0190030044和0190030045的区别
