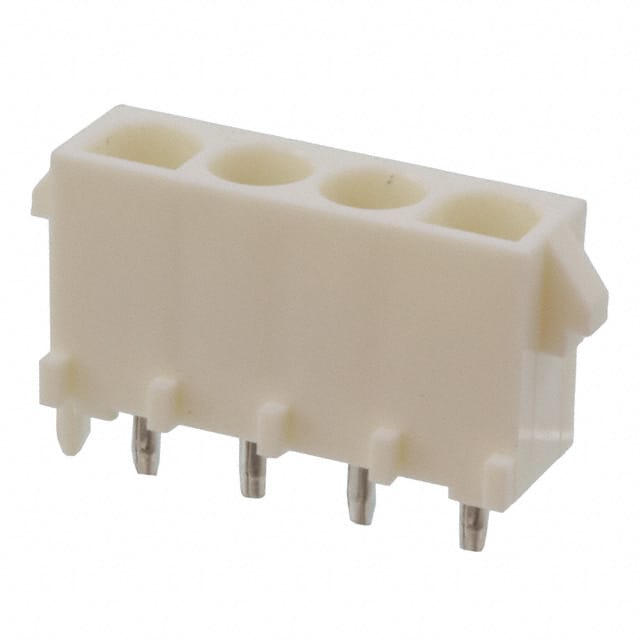

6.35毫米（ .250“ ）间距MLX ™电源连接头，垂直，用塑料偏光PEG， 4电路 6.35mm .250" Pitch MLX™ Power Connector Header, Vertical, with Plastic Polarizing Peg, 4 Circuits
针座 通孔 4 位置 0.250"（6.35mm）
得捷:
CONN HEADER VERT 4POS 6.35MM
艾睿:
This 0432550075 power connector from Molex comes in a variety of types to support AC or DC power entry modules. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin. It has a header type gender. It has a straight body orientation. Its pitch is 6.35 mm. This connector has a single port. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 20 A/contact. 0432550075 is housed in polyester. The item will be shipped in tray orientation. This product is 26.67 mm long, 13.97 mm tall and 7.62 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its 4 terminals use the solder termination method.
Chip1Stop:
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Bag
Verical:
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port MLX™ Tray
