0190060014

0190060014图片1
0190060014图片2
0190060014图片3
0190060014图片4
0190060014图片5
0190060014图片6
0190060014概述

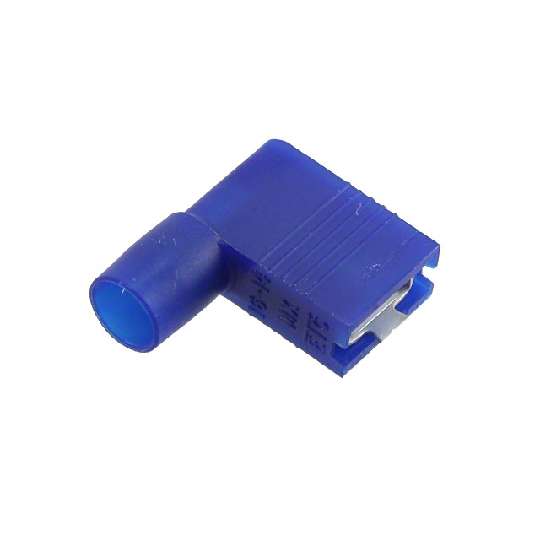

标志Avikrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,金属带, Tab6.35mm ( .250“ )× 0.81毫米( .032 Flag Avikrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Metal Strip, Tab6.35mm .250" x 0.81mm .032

Make a proper connection between two terminal blocks using this quick disconnect terminal wire terminal from . It has a female type gender. Its wire is 14-16 AWG. This product is 15.75 mm long and 17.53 mm. This wire terminal has an operating temperature of -65 to 105 °C.

0190060014中文资料参数规格
技术参数

线规 14AWG ~ 16AWG

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 600 V

物理参数

颜色 Blue

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0190060014
型号: 0190060014
制造商: Molex 莫仕
描述:标志Avikrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,金属带, Tab6.35mm ( .250“ )× 0.81毫米( .032 Flag Avikrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Metal Strip, Tab6.35mm .250" x 0.81mm .032
替代型号0190060014
型号/品牌 代替类型 替代型号对比

0190060014

Molex 莫仕

当前型号

当前型号

0190060013

莫仕

完全替代

0190060014和0190060013的区别
