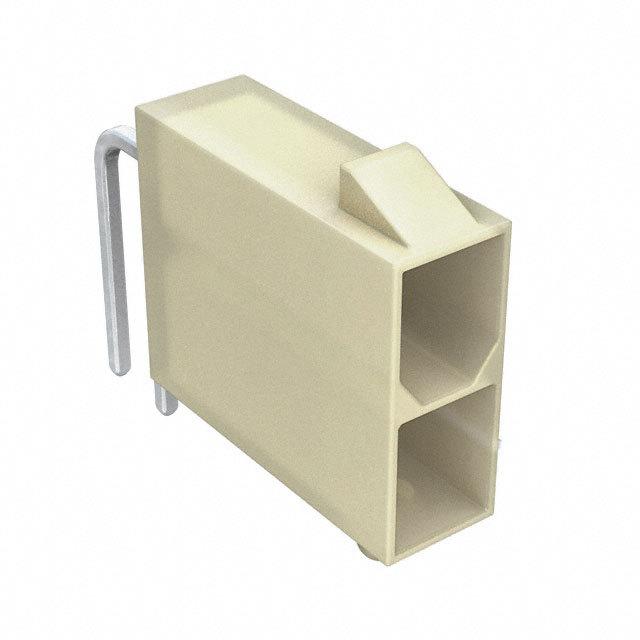

4.20毫米( .165 “ )间距迷你适合小头,双排,直角,以管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock
针座 通孔,直角 2 位置
得捷:
CONN HEADER R/A 2POS
艾睿:
Connecting an electronic device to a power supply has never been easier with this 0039300020 power connector from Molex. This HDR connector&s;s 2 contacts that are made out of brass alloy and plated with tin over copper. It has a right angle body orientation. It has a maximum voltage rating of 600 V. It has a header type gender. This connector has a single port. This device has a maximum current rating of 13 A/contact. 0039300020 is housed in polyamide 6/6. This product is 5.4 mm long, 11.4 mm tall and 19.4 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 2 terminals use the solder termination method.
安富利:
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag
Chip1Stop:
Conn Wire to Board HDR 2 POS 4.2mm Solder RA Thru-Hole Bag
Verical:
Conn Wire to Board HDR 2Power POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Sr™ Bag
触点数 2
极性 Male
绝缘电阻 1000 MΩ
排数 2
针脚数 2
拔插次数 30
额定电流Max 13A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 600 V
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 ~
长度 5.4 mm
宽度 19.4 mm
高度 11.4 mm
封装 ~
外壳颜色 Natural
触点材质 Brass
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bag
制造应用 通用,工业,电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0039300020 Molex 莫仕 | 当前型号 | 当前型号 |
0039307025 莫仕 | 完全替代 | 0039300020和0039307025的区别 |
0050348569 莫仕 | 完全替代 | 0039300020和0050348569的区别 |
0039301020 莫仕 | 类似代替 | 0039300020和0039301020的区别 |
