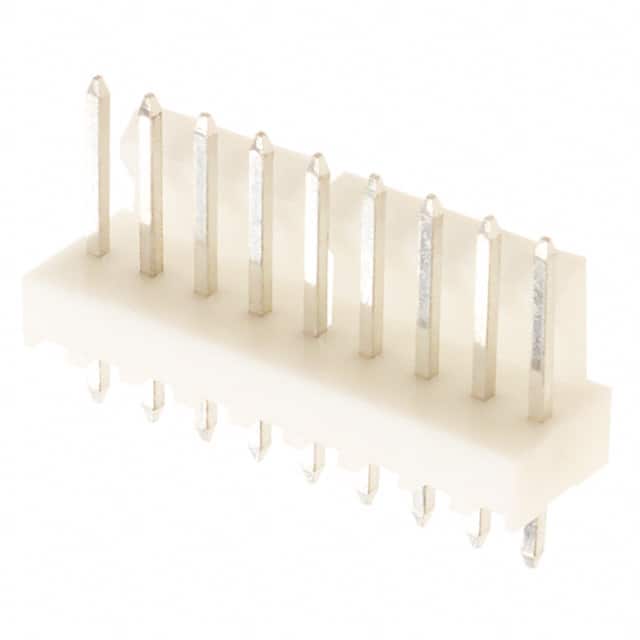

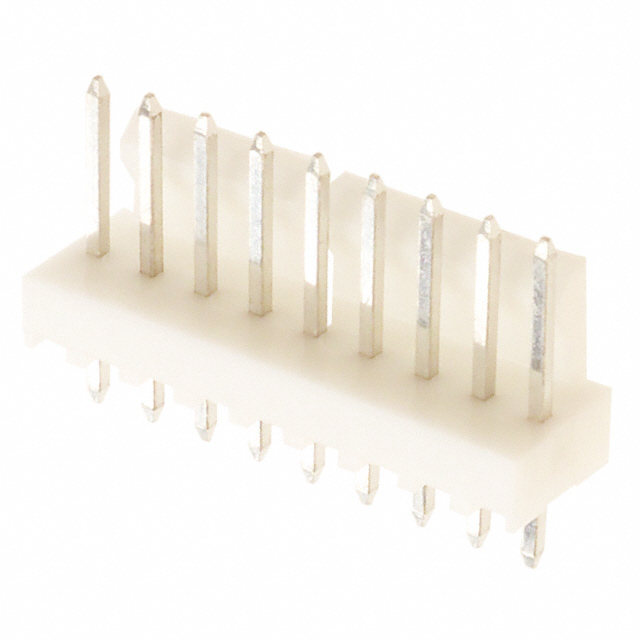

2.54毫米（ .100 ）间距KK®固体头，垂直，用摩擦锁， 9电路，锡（Sn ）镀层 2.54mm .100 Pitch KK® Solid Header, Vertical, with Friction Lock, 9 Circuits, Tin Sn Plating
针座 通孔 9 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 9POS 2.54MM
艾睿:
Easily mount this wire to board 0022232091 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 9 contacts that are made out of brass and plated with tin over copper. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. 0022232091 is housed in white nylon. This product is 22.86 mm long, 10.67 mm tall and 6.35 mm deep. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Tube
Chip1Stop:
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn Wire to Board HDR 9 POS 2.54mm Solder ST Top Entry Thru-Hole KK® Bag
