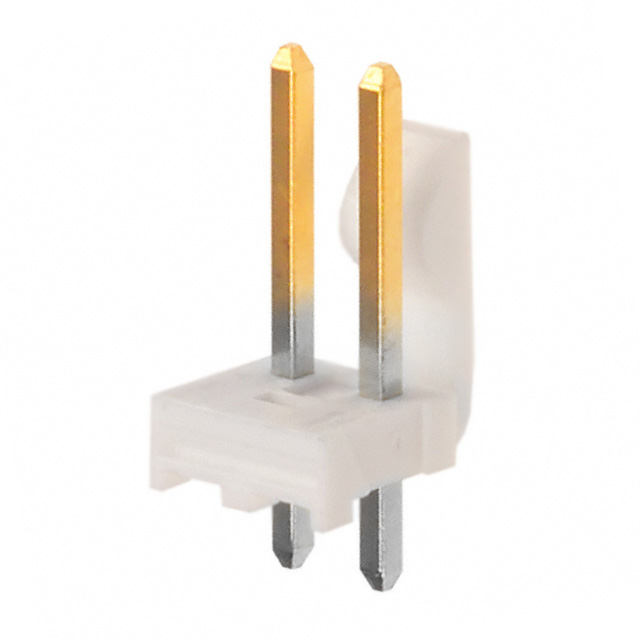

3.96毫米（ .156 “ ）间距KK固态头，垂直，摩擦锁， 2个电路，金（Au ）镀层 3.96mm .156" Pitch KK Solid Header, Vertical, Friction Lock, 2 Circuits, Gold Au Plating
Connector Header Through Hole 2 position 0.156" 3.96mm
得捷:
CONN HEADER VERT 2POS 3.96MM
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s wire to board 0026614020 header connector. This HDR connector&s;s 2 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 1-row connector. Its pitch is 3.96 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 7 A/contact. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C. This product is 7.77 mm long, 14.73 mm tall and 10.01 mm deep. 0026614020 is housed in natural polyester.
Verical:
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Top Entry Thru-Hole KK® Bag
