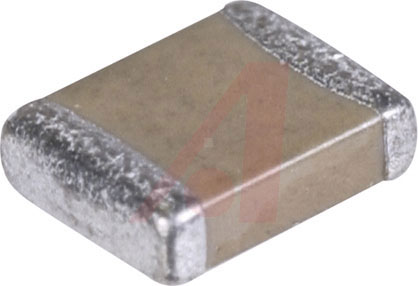

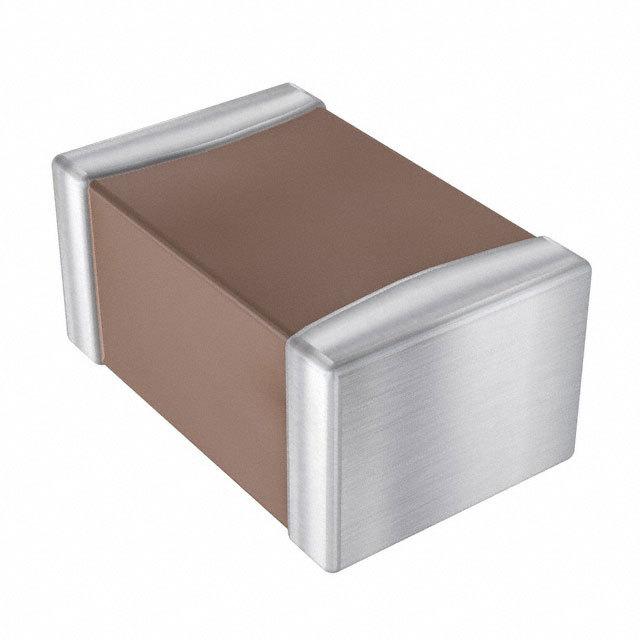

AVX 08055C823KAT2A 多层陶瓷电容器, 表面贴装, 0.082 µF, ± 10%, X7R, 50 V, 0805 [2012 公制]
MLCC-多层陶瓷器
得捷:
CAP CER 0.082UF 50V X7R 0805
欧时:
SMD MLCC 0805 50V X7R 0.082uF 10%
e络盟:
多层陶瓷电容器, 表面贴装, 82000 pF, 50 V, 0805 [2012 公制], ± 10%, X7R, AVX 0805 MLCC
艾睿:
This 08055C823KAT2A multilayer ceramic capacitor from AVX has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 0.082uF. This product is 2.01 mm long, 0.94Max mm tall and 1.25 mm deep. It has a tolerance of 10%.
Allied Electronics:
Capacitor; Ceramic; Cap 0.082 uF Tol 10%; SMT; Vol-Rtg 50V; X7R; TR
安富利:
Cap Ceramic 0.082uF 50V X7R 10% SMD 0805 125°C Paper T/R
Verical:
Cap Ceramic 0.082uF 50V X7R 10% Pad SMD 0805 125C T/R
Newark:
# AVX 08055C823KAT2A SMD Multilayer Ceramic Capacitor, 0805 [2012 Metric], 0.082 µF, 50 V, ± 10%, X7R
儒卓力:
**KC 82nF 0805 10% 50V X7R **
Win Source:
0.082μF 50V Ceramic Capacitor X7R 0805 2012 Metric 0.079" L x 0.049" W 2.01mm x 1.25mm
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 0.082 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.94 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
08055C823KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
08055C823K4T2A 艾维克斯 | 完全替代 | 08055C823KAT2A和08055C823K4T2A的区别 |
C0805C823K5RAC7800 基美 | 类似代替 | 08055C823KAT2A和C0805C823K5RAC7800的区别 |
LD055C823KAB2A 艾维克斯 | 类似代替 | 08055C823KAT2A和LD055C823KAB2A的区别 |
