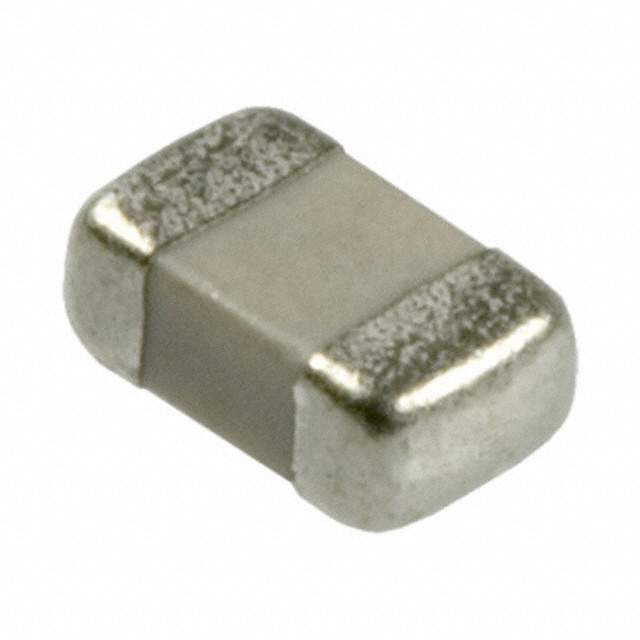

08051C681KAT2A图片1
08051C681KAT2A图片2
08051C681KAT2A图片3
08051C681KAT2A图片4
08051C681KAT2A图片5
08051C681KAT2A图片6
08051C681KAT2A概述

AVX  08051C681KAT2A  多层陶瓷电容器, 表面贴装, 680 pF, ± 10%, X7R, 100 V, 0805 [2012 公制]

The is a surface-mount SMT Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X7R formulations are called temperature stable ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55 to 125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. The X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

.
Reflow/wave soldering method
.
EIA Class II dielectric
.
Low parasitics
.
Excellent EMI filtering capabilities
.
Standard product
08051C681KAT2A中文资料参数规格
技术参数

额定电压DC 100 V

绝缘电阻 100 GΩ

电容 680 pF

容差 ±10 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

精度 ±10 %

额定电压 100 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.2 mm

高度 0.94 mm

封装公制 2012

封装 0805

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

制造应用 Industrial, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

08051C681KAT2A引脚图与封装图
08051C681KAT2A引脚图
08051C681KAT2A封装图
08051C681KAT2A封装焊盘图
在线购买08051C681KAT2A
型号: 08051C681KAT2A
制造商: AVX 艾维克斯
描述:AVX  08051C681KAT2A  多层陶瓷电容器, 表面贴装, 680 pF, ± 10%, X7R, 100 V, 0805 [2012 公制]
替代型号08051C681KAT2A
型号/品牌 代替类型 替代型号对比

08051C681KAT2A

AVX 艾维克斯

当前型号

当前型号

08051C681KAT4A

艾维克斯

完全替代

08051C681KAT2A和08051C681KAT4A的区别

08051C681K4T2A

艾维克斯

完全替代

08051C681KAT2A和08051C681K4T2A的区别

MC0805B681K101CT

Multicomp

完全替代

08051C681KAT2A和MC0805B681K101CT的区别
