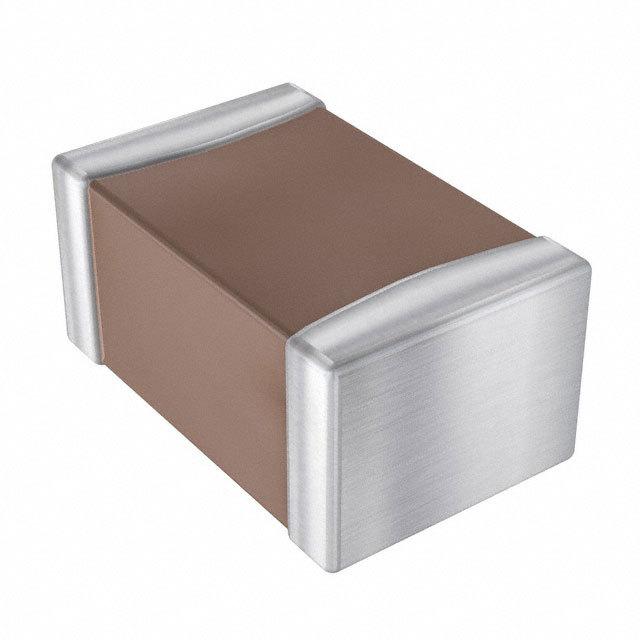

AVX 08055A2R7CAT2A 多层陶瓷电容器, 表面贴装, 2.7 pF, ± 0.25pF, C0G / NP0, 50 V, 0805 [2012 公制]
The is a surface-mount SMT Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The C0G NP0 is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. Modern C0G NP0 formulations contain neodymium, samarium and other rare earth oxides. C0G NP0 ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0±30ppm/°C which is less than ±0.3% ΔC from -55 to 125°C. Capacitance drift or hysteresis for C0G NP0 ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G NP0, one-fifth that shown by most other dielectrics.
额定电压DC 50 V
绝缘电阻 100 GΩ
电容 2.7 pF
容差 ±0.25 pF
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount

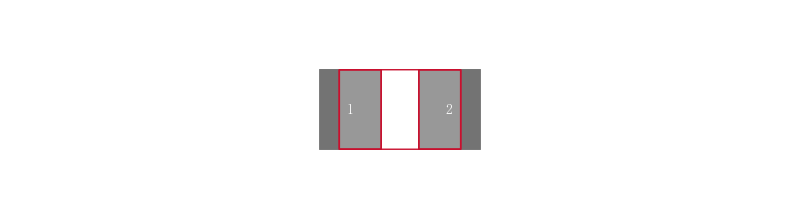

封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 0.94 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±0.00 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Industrial, 通用, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
08055A2R7CAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
08051A2R7CAT2A 艾维克斯 | 功能相似 | 08055A2R7CAT2A和08051A2R7CAT2A的区别 |
C0805C279C5GACTU 基美 | 功能相似 | 08055A2R7CAT2A和C0805C279C5GACTU的区别 |
08052A2R7CAT2A 艾维克斯 | 功能相似 | 08055A2R7CAT2A和08052A2R7CAT2A的区别 |
