陶瓷电容, 16PF 100V, C0G, 5%
±5% 100V 陶瓷器 C0G,NP0 0805(2012 公制)
得捷:
CAP CER 16PF 100V NP0 0805
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100V 16pF C0G 0805 5% Tol
e络盟:
陶瓷电容, 16PF 100V, C0G, 5%
艾睿:
Cap Ceramic 16pF 100V C0G 5% SMD 0805 125
安富利:
AVX has developed a range of multilayer ceramic capacitors designed for use in applications up to 150ºC. These 0805 size capacitors are manufactured with an X8R and an X8L dielectric material. X8R material has capacitance variation of ±15% between -55ºC and +150ºC. The X8L material has capacitance variation of ±15% between -55ºC to 125ºC and +15/-40% from +125ºC to +150ºC.The need for X8R and X8L performance has been driven by customer requirements for parts that operate at elevated temperatures. They provide a highly reliable capacitor with low loss and stable capacitance over temperature.They are ideal for automotive under the hood sensors, and various industrial applications. Typical industrial application would be drilling monitoring system. They can also be used as bulk capacitors for high temperature camera modules.
Newark:

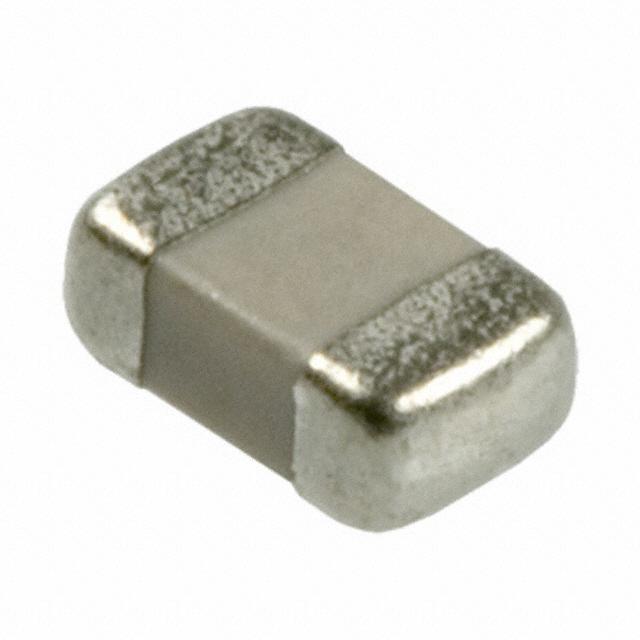

# AVX 08051A160JAT2A SMD Multilayer Ceramic Capacitor, 0805 [2012 Metric], 16 pF, 100 V, ± 5%, C0G / NP0 New
额定电压DC 100 V
电容 16 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 0.5 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
08051A160JAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
GRM2195C2A160JZ01D 村田 | 功能相似 | 08051A160JAT2A和GRM2195C2A160JZ01D的区别 |
