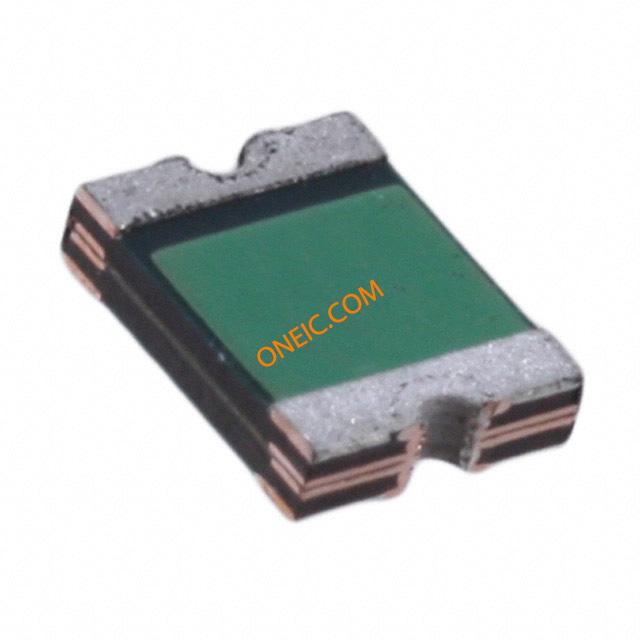

保险丝, 自复式 PTC, 60VDC, 0.1A, SMD
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from Bel Fuse! This device has a maximum current rating of 10. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 1.15Max mm tall and 2.8Max mm deep.
跳闸时间 1.5 s
耗散功率 0.6 W
电阻 15 Ω
保持电流 100 mA
跳闸电流 250 mA
额定电流Max 10 A
保持电流Max 100 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1.15 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCH0010FF2E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCB0010FF2E 百富电子 | 类似代替 | 0ZCH0010FF2E和0ZCB0010FF2E的区别 |
