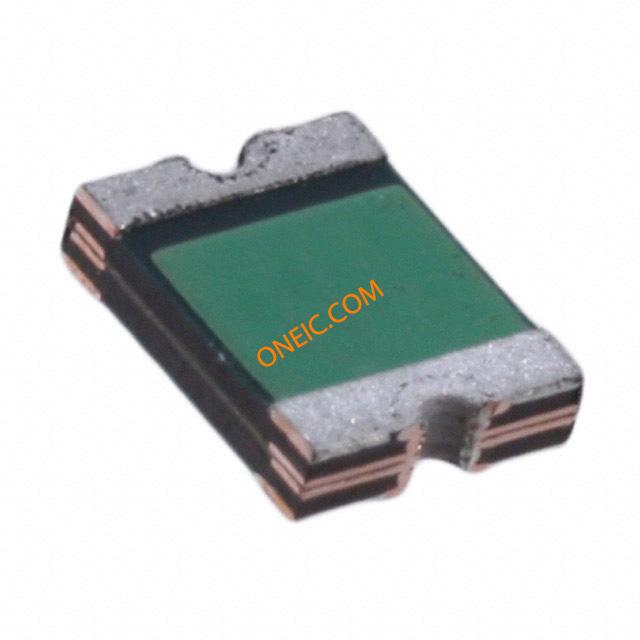

保险丝, 自复式 PTC, 30VDC, 0.2A, SMD
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from Bel Fuse! This device has a maximum current rating of 10. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 0.85Max mm tall and 2.8Max mm deep.
跳闸时间 20 ms
耗散功率 0.6 W
电阻 5 Ω
保持电流 0.2 A
跳闸电流 400 mA
额定电流Max 10 A
保持电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 0.85 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCH0020FF2E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCB0020FF2E 百富电子 | 类似代替 | 0ZCH0020FF2E和0ZCB0020FF2E的区别 |
