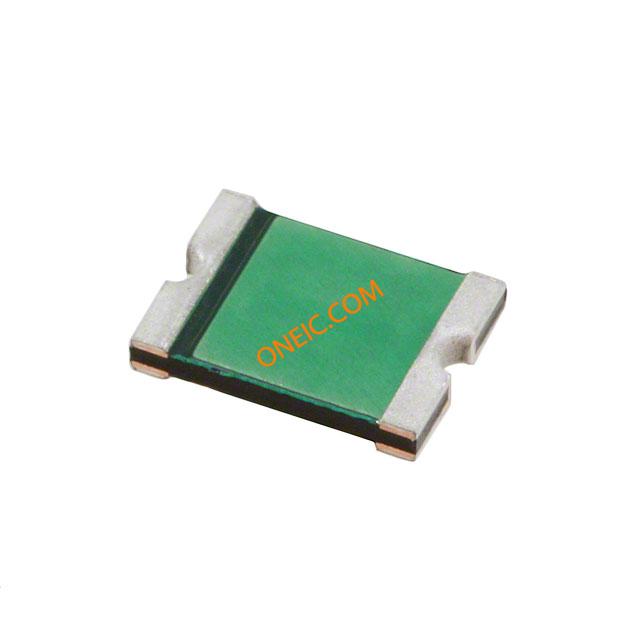

保险丝, 自复式 PTC, 16VDC, 0.5A, SMD
This PTC resettable fuse from Bel Fuse is ideal for low current and low voltage ratings. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 0.65Max mm tall and 3.41Max mm deep.
跳闸时间 150 ms
耗散功率 0.8 W
电阻 1 Ω
保持电流 0.5 A
跳闸电流 1 A
额定电流Max 100 A
保持电流Max 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5500 mm
宽度 3.2400 mm
高度 0.65 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCG0050FF2C BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCC0050FF2C 百富电子 | 类似代替 | 0ZCG0050FF2C和0ZCC0050FF2C的区别 |
MF-MSMD050-2 伯恩斯 | 功能相似 | 0ZCG0050FF2C和MF-MSMD050-2的区别 |
SMD1812P110TSA/16 力特 | 功能相似 | 0ZCG0050FF2C和SMD1812P110TSA/16的区别 |
