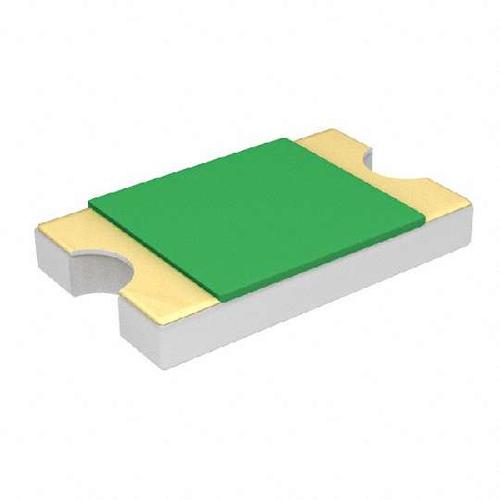

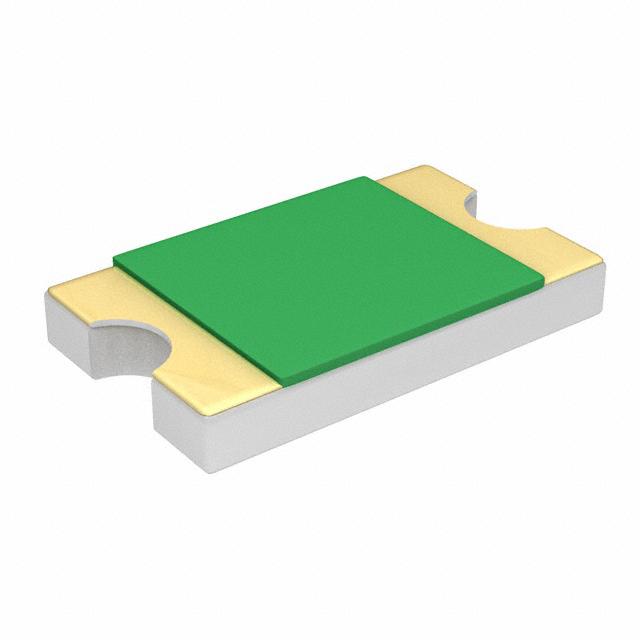

保险丝, 自复式 PTC, 9VDC, 0.2A, SMD
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from Bel Fuse is perfect for you! This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 2.3Max mm long, 1Max mm tall and 1.5Max mm deep.
跳闸时间 0.02 s
耗散功率 0.5 W
电阻 3.5 Ω
保持电流 0.2 A
跳闸电流 500 mA
额定电流Max 100 A
保持电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 9 VDC
额定电压 9 VDC
安装方式 Surface Mount
封装公制 2012

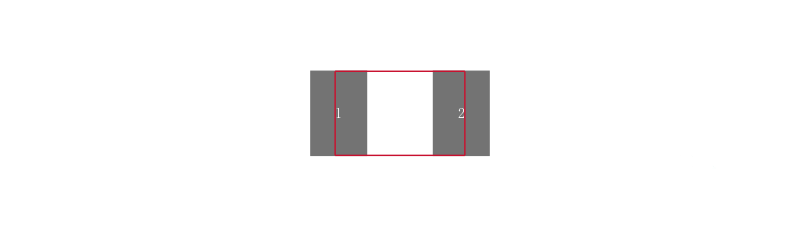

封装 0805

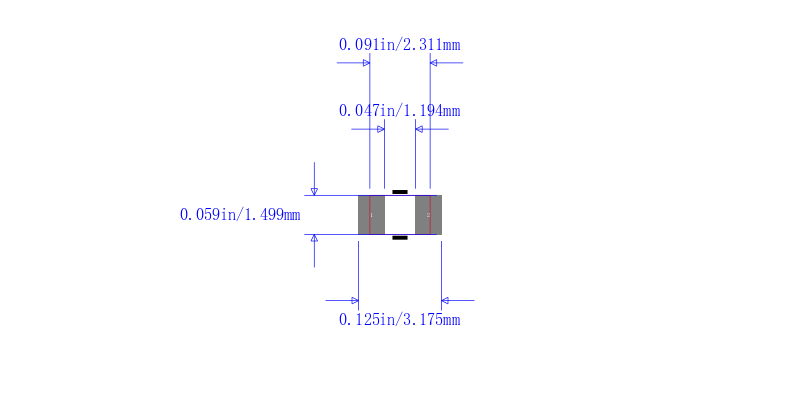

长度 2 mm
宽度 1.25 mm
高度 1 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCK0020FF2G BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCE0020FF2G 百富电子 | 类似代替 | 0ZCK0020FF2G和0ZCE0020FF2G的区别 |
