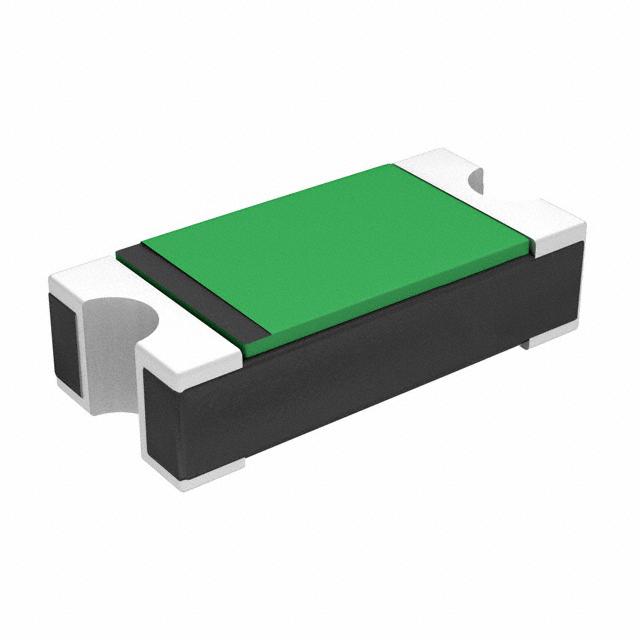

保险丝, 自复式 PTC, 15VDC, 0.05A, SMD
Avoid constantly replacing burned out fuses with this PTC resettable fuse from Bel Fuse. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.8Max mm long, 0.75Max mm tall and 1Max mm deep.
跳闸时间 100 ms
耗散功率 0.5 W
电阻 30 Ω
保持电流 0.05 A
跳闸电流 150 mA
额定电流Max 40 A
保持电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 15 VDC
额定电压 15 VDC
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.75 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
