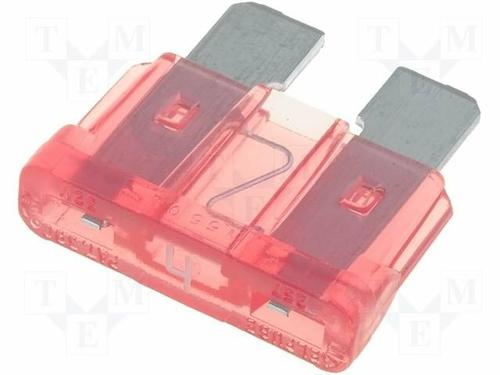

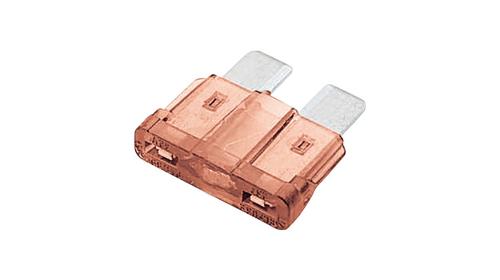

LITTELFUSE 0287004.PXCN 汽车保险丝, ATOF系列, 4 A, 快速反应, 32 V, 19.1mm x 5mm x 19mm
ATOF 熔丝
Littelfuse ATOF 汽车熔丝易于识别和更换,适合用于种类繁多的低电压电子应用。
得捷:
FUSE AUTO 4A 32VDC BLADE ATO/ATC
欧时:
Littelfuse 4A 粉红色 车用插片式熔断器 0287004.PXCN, 32V dc, 19.1mm x 5.1mm x 12.3mm
立创商城:
4A 32VDC
贸泽:
汽车保险丝 ATOF 32V 4A Low-Current Nylon
艾睿:
Be protected by adding a blade 0287004.PXCN fuse developed by Littelfuse. This device has a current rating of 4. This fuse has an operating temperature range of -40 °C to 105 °C. It has 2 terminals. This product is 19.1 mm long, 12.3 mm tall and 5.1 mm deep. Its fuse is made from polyamide 66. The maximum DC voltage rating is 32 VDC.
Allied Electronics:
Fuse; ATOF; Automotive; 4A; 32V; Nylon w/Tin-Plated Blade Terminals; Pink
Chip1Stop:
Fuse Blade 4A 32V Socket 19.1 X 12.3 X 5.1mm Polyamide 66 Automotive
TME:
Fuse: fuse; automotive; 4A; 32V; 19mm; ATO
Verical:
Fuse Blade 4A 32V Socket 19.1 X 12.3 X 5.1mm Polyamide 66 Automotive CSA/UL
儒卓力:
**4A 32V AUTO ATO pink **
Win Source:
FUSE AUTO 4A 32VDC BLADE ATO/ATC / 4 A AC 32 V DC Fuse Automotive Holder Blade, ATO/ATC
额定电压DC 32 V
额定电流 4 A
电阻 0.0228 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
引脚数 2
封装 Blade, ATO/ATC
长度 19.1 mm
宽度 5.1 mm
高度 12.3 mm
封装 Blade, ATO/ATC
颜色 Pink
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0287004.PXCN Littelfuse 力特 | 当前型号 | 当前型号 |
0257004.PXPV 力特 | 完全替代 | 0287004.PXCN和0257004.PXPV的区别 |
0287004.L 力特 | 完全替代 | 0287004.PXCN和0287004.L的区别 |
0287004.H 力特 | 完全替代 | 0287004.PXCN和0287004.H的区别 |
