自恢复保险丝—PPTC

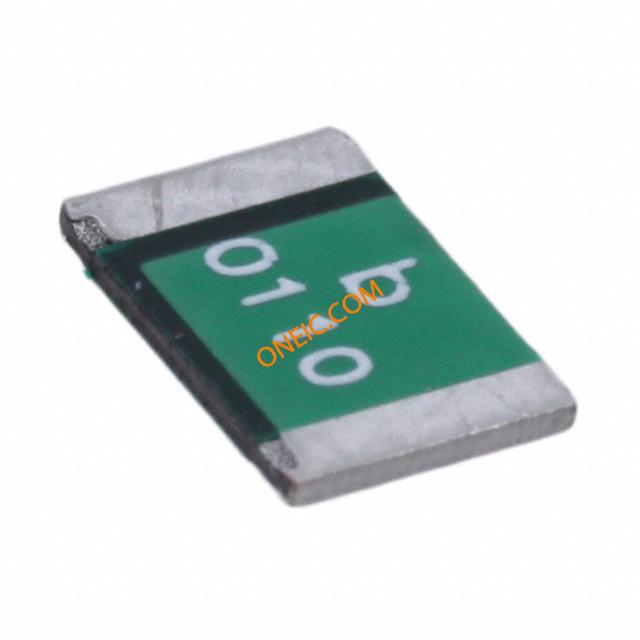

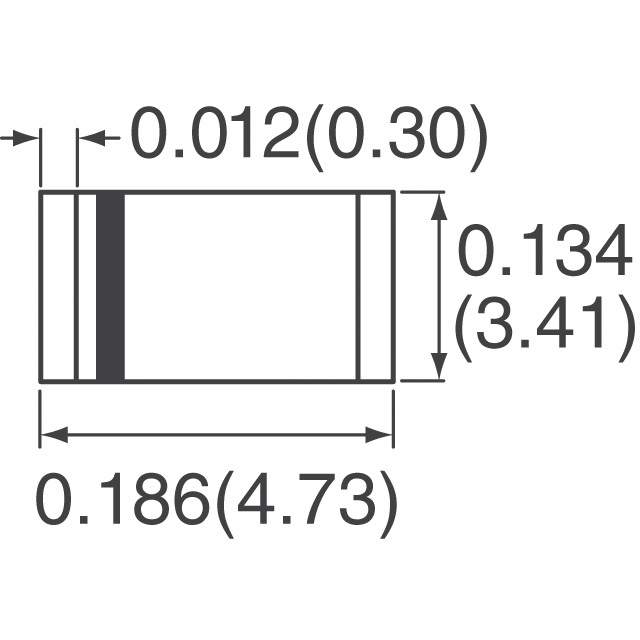

This positive temperature coefficient device from Bel Fuse is an automatically resetting fuse. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 0.55Max mm tall and 3.41Max mm deep.
跳闸时间 300 ms
耗散功率 0.8 W
电阻 0.2 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 100 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 8 VDC
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm

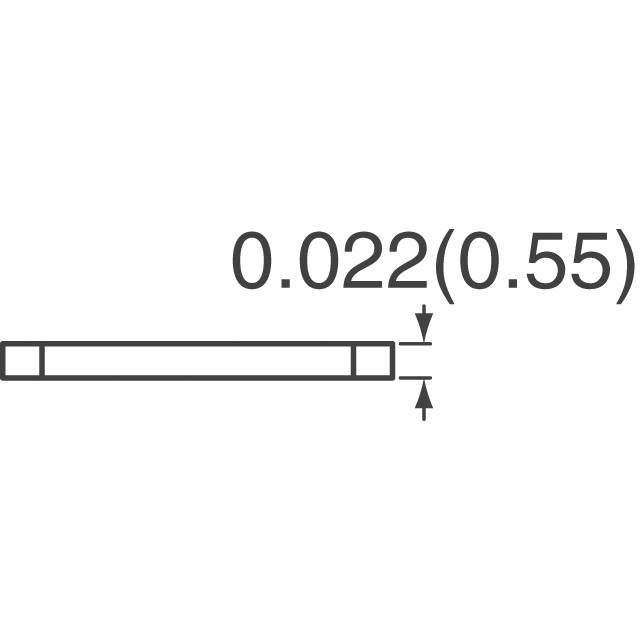

高度 0.55 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCC0110FF2C BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCG0110FF2C 百富电子 | 类似代替 | 0ZCC0110FF2C和0ZCG0110FF2C的区别 |
