自恢复保险丝—PPTC

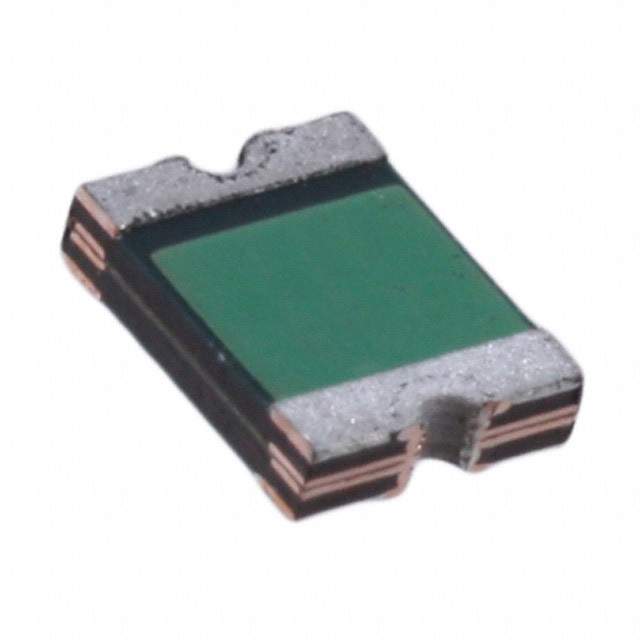

In the event of overcurrent or short, your circuit can resume normal operation with this positive temperature coefficient device from Bel Fuse, without the need to replace any fuses. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 0.9Max mm tall and 2.8Max mm deep.
跳闸时间 500 ms
耗散功率 0.8 W
电阻 0.11 Ω
保持电流 1.5 A
跳闸电流 3 A
额定电流Max 100 A
保持电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
安装方式 Surface Mount

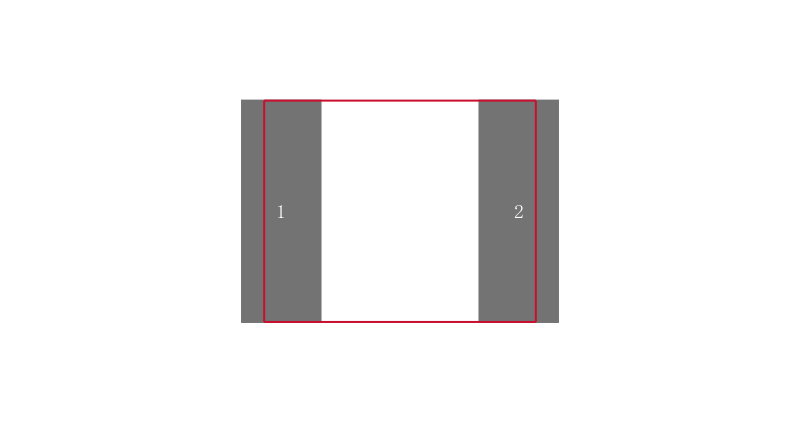

封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 0.9 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCH0150FF2E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCB0150FF2E 百富电子 | 完全替代 | 0ZCH0150FF2E和0ZCB0150FF2E的区别 |
