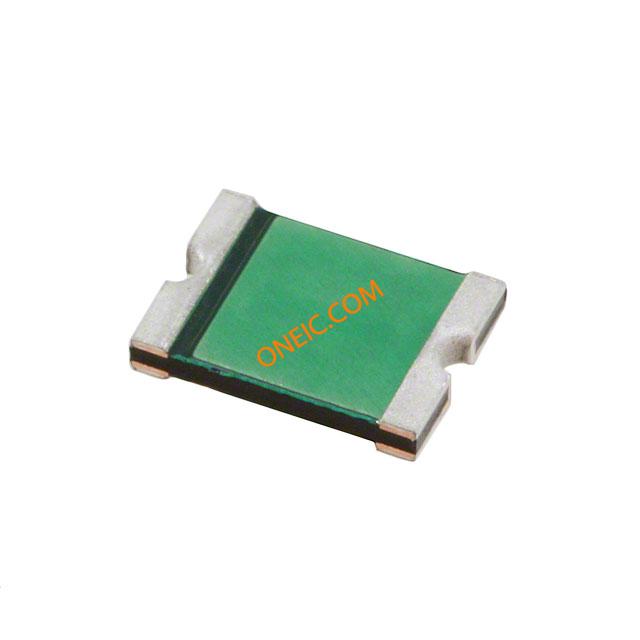

保险丝, 自复式 PTC, 24VDC, 1.5A, SMD
In the event of overcurrent or short, your circuit can resume normal operation with this positive temperature coefficient device from Bel Fuse, without the need to replace any fuses. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 1.55Max mm tall and 3.41Max mm deep.
跳闸时间 1.5 s
耗散功率 1 W
电阻 0.12 Ω
保持电流 1.5 A
跳闸电流 3 A
额定电流Max 100 A
保持电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 24 VDC
额定电压 24 VDC
工作电压Max 24 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 1.55 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0ZCG0150BF2C BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCC0150BF2C 百富电子 | 完全替代 | 0ZCG0150BF2C和0ZCC0150BF2C的区别 |
MC36232 Multicomp | 功能相似 | 0ZCG0150BF2C和MC36232的区别 |
