0603 47nF ±10% 25V X5R
0.047µF ±10% 25V Ceramic Capacitor X5R 0603 1608 Metric
得捷:
CAP CER 0.047UF 25V X5R 0603
艾睿:

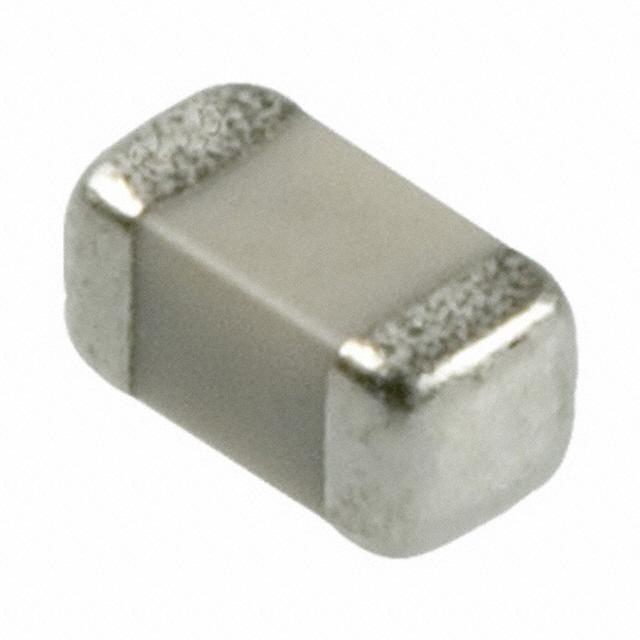

This 06033D473KAT2A multilayer ceramic capacitor from AVX uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 1.6 mm long, 0.9Max mm tall and 0.81 mm deep. It has a tolerance of 10%. Its capacitance value is 0.047uF.
安富利:
Cap Ceramic 0.047uF 25V X5R 10% SMD 0603 85°C Paper T/R
Verical:
Cap Ceramic 0.047uF 25V X5R 10% Pad SMD 0603 85C T/R
Newark:
# AVX 06033D473KAT2A SMD Multilayer Ceramic Capacitor, 0603 [1608 Metric], 0.047 µF, 25 V, ± 10%, X5R
额定电压DC 25.0 V
电容 47000 pF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.9 mm
封装公制 1608
封装 0603
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
06033D473KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
06035D473KAT2A 艾维克斯 | 功能相似 | 06033D473KAT2A和06035D473KAT2A的区别 |
