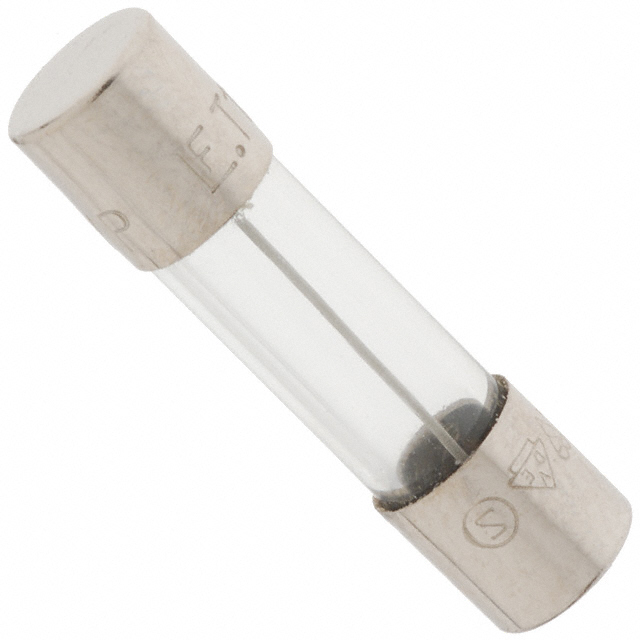

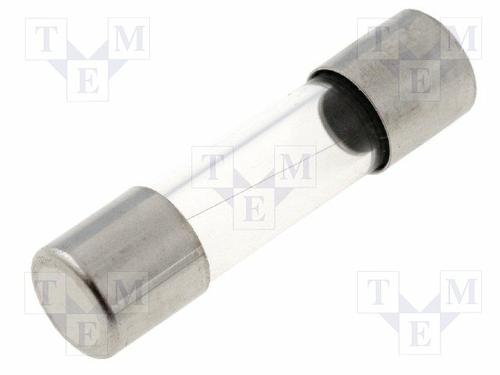

217 系列 快熔型 250 V 0.4 A 5 x 20 mm 玻璃管 保险丝
Be protected by adding a miniature fuse developed by . Its maximum power dissipation is 1.6Typ W. This device has a current rating of 0.4. This device has a maximum power dissipation of 1.6Typ W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0217.400HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from glass.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 400 mA
耗散功率 1.6 W
电阻 0.277 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 V
额定电压AC Max 250 V
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0217.400HXP Littelfuse 力特 | 当前型号 | 当前型号 |
19304000001 力特 | 完全替代 | 0217.400HXP和19304000001的区别 |
0217.400H 力特 | 完全替代 | 0217.400HXP和0217.400H的区别 |
0217.400MXP 力特 | 类似代替 | 0217.400HXP和0217.400MXP的区别 |
