自恢复保险丝—PPTC

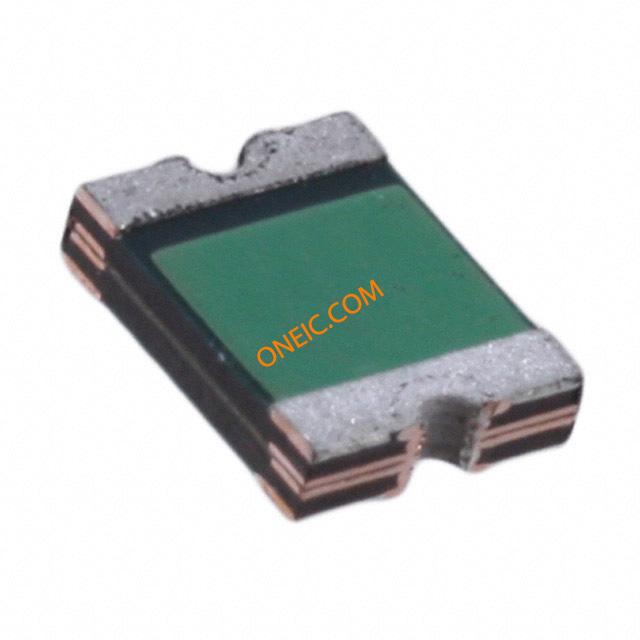

This positive temperature coefficient device from Bel Fuse is an automatically resetting fuse. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 1.4Max mm tall and 2.8Max mm deep.
跳闸时间 1 s
耗散功率 0.8 W
电阻 0.07 Ω
保持电流 2 A
跳闸电流 4 A
额定电流Max 100 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
安装方式 Surface Mount

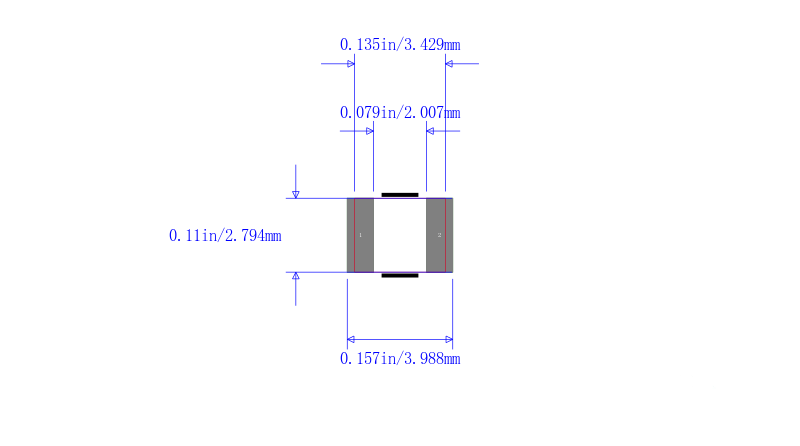

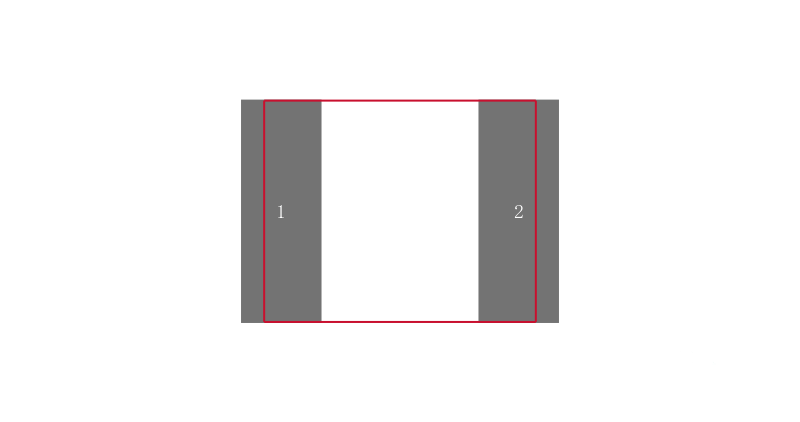

封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1.4 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCH0200FF2E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCB0200FF2E 百富电子 | 完全替代 | 0ZCH0200FF2E和0ZCB0200FF2E的区别 |
