PTC Resettable Fuse 0.75Ahold 1.5Atrip 60VDC 40A 1.5W 0.3s 0.18Ω SMD Solder Pad 7.98 X 5.44 X 1.15mm T/R

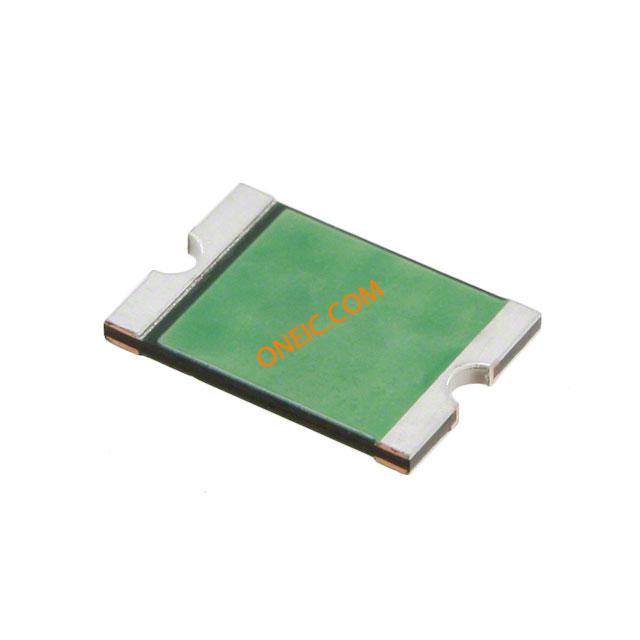

This PTC resettable fuse from Bel Fuse is ideal for low current and low voltage ratings. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 1.15Max mm tall and 5.44Max mm deep.
跳闸时间 300 ms
耗散功率 1.5 W
电阻 1 Ω
保持电流 0.75 A
跳闸电流 1.5 A
额定电流Max 100 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
工作电压Max 60 V
安装方式 Surface Mount

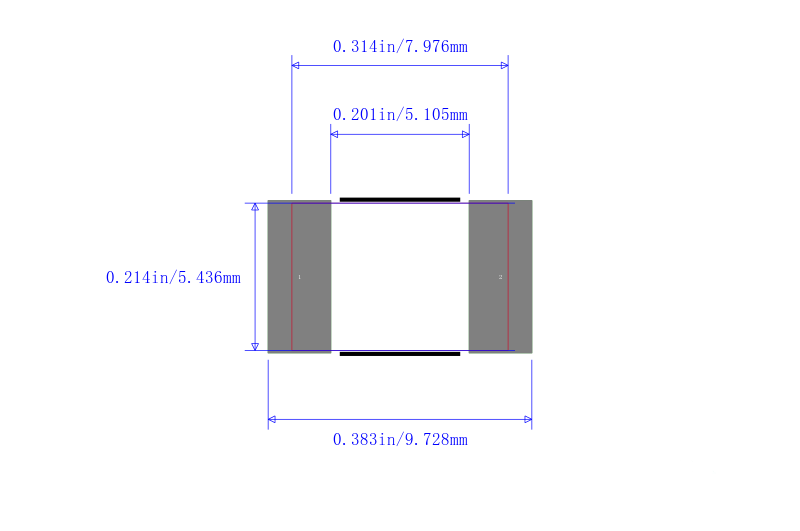

封装 2920
高度 1.15 mm
封装 2920
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
