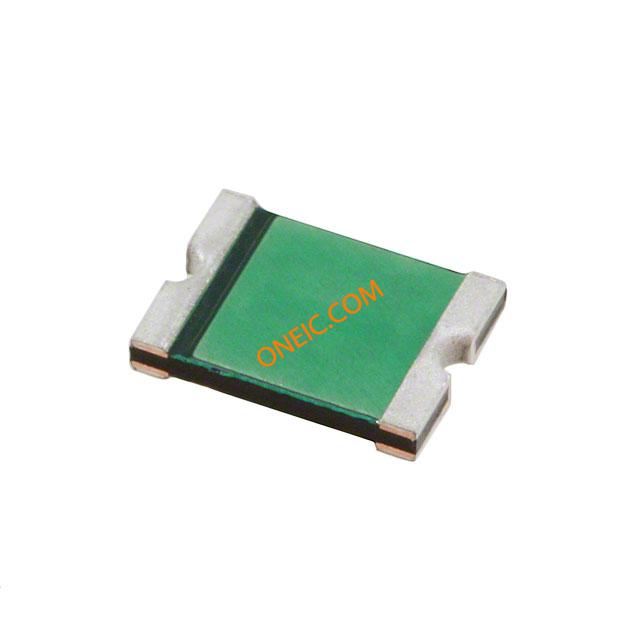

保险丝, 自复式 PTC, 16VDC, 2.6A, SMD
This PTC resettable fuse from Bel Fuse is an alternative to replacing burned out fuses. This device has a maximum current rating of 100. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73Max mm long, 1.55Max mm tall and 3.41Max mm deep.
跳闸时间 5 s
耗散功率 1.3 W
电阻 0.05 Ω
保持电流 2.6 A
跳闸电流 5 A
额定电流Max 100 A
保持电流Max 2.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 VDC
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 1.55 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCG0260BF2B BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCC0260BF2B 百富电子 | 完全替代 | 0ZCG0260BF2B和0ZCC0260BF2B的区别 |
