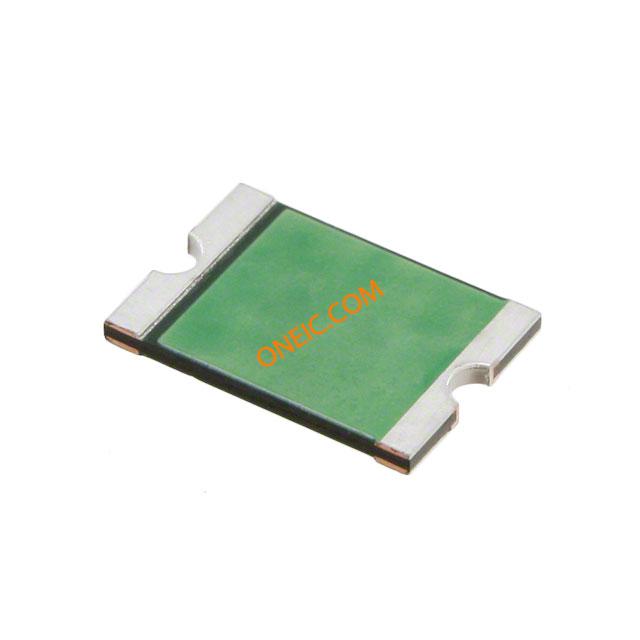

保险丝, 自复式 PTC, 33VDC, 1.85A, SMD
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from Bel Fuse! This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 0.9Max mm tall and 5.44Max mm deep.
跳闸时间 2.5 s
耗散功率 1.5 W
电阻 0.15 Ω
保持电流 1.85 A
跳闸电流 3.7 A
额定电流Max 100 A
保持电流Max 1.85 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 15 VDC
额定电压 33 VDC
安装方式 Surface Mount
封装 2920
长度 7.3500 mm
宽度 5.1200 mm
高度 0.9 mm
封装 2920
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCF0185FF2C BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCD0185FF2C 百富电子 | 类似代替 | 0ZCF0185FF2C和0ZCD0185FF2C的区别 |
