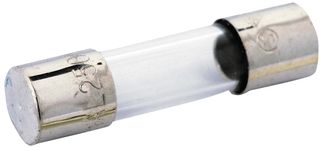

217 系列 快熔型 250 V 0.5 A 5 x 20 mm 玻璃管 保险丝
217 Series fast-acting glass fuses are designed for fast-acting protection of electronic equipment and appliances when fuses to international standards are required. Designed to international IEC standards for use globally.- .
- *Agency Approvals:** VDE approved through 6.3 amps; BSI approved 0.4-6.3 amps; Recognized under the Components Program of Underwriters Laboratories and recognized by CSA through 6.3 amps; METI approved 1-15 amps; CCC approved through 6.3 amps; K Mark approved through 10 amps.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.5 A
耗散功率 1.6 W
电阻 0.2065 Ω
电阻DC） 0.207 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 VAC
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0217.500HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0217.500MXP 力特 | 类似代替 | 0217.500HXP和0217.500MXP的区别 |
0217.500TXP 力特 | 类似代替 | 0217.500HXP和0217.500TXP的区别 |
0217.500VXP 力特 | 类似代替 | 0217.500HXP和0217.500VXP的区别 |
