318分之312系列无铅3AG ，快熔保险丝 312/318 Series Lead-Free 3AG, Fast-Acting Fuse

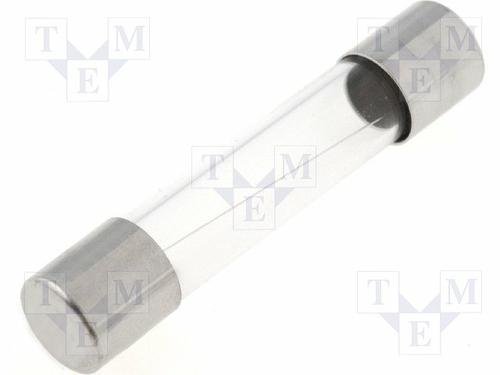

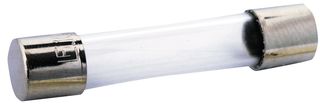

The is a 2.5A 3AG fast-acting Cartridge Fuse with glass body, nickel plated brass cap and tin plated copper leads. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- 0.0513R Nominal cold resistance
- .
- -55 to 125°C Temperature range
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 2.5 A
电阻 0.051 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
031202.5MXP Littelfuse 力特 | 当前型号 | 当前型号 |
031202.5HXP 力特 | 完全替代 | 031202.5MXP和031202.5HXP的区别 |
BK/AGC-2-1/2-R 库柏 | 类似代替 | 031202.5MXP和BK/AGC-2-1/2-R的区别 |
AGC-2-1/2 伊顿巴斯曼 | 类似代替 | 031202.5MXP和AGC-2-1/2的区别 |
