0235005.HXP

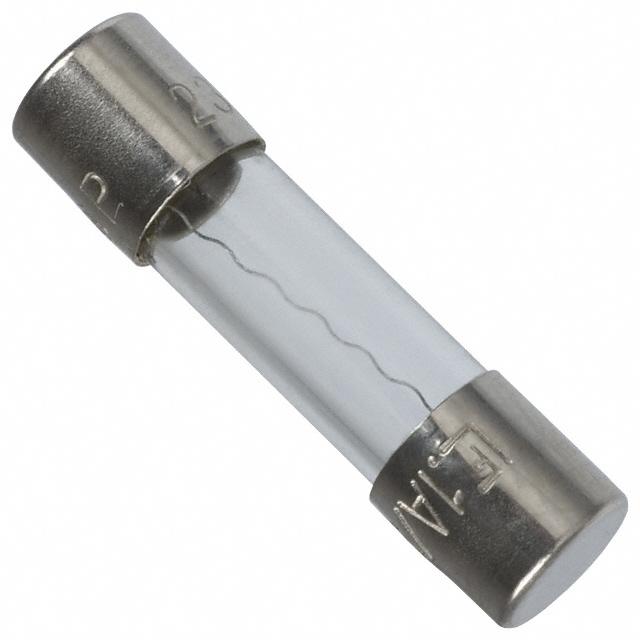

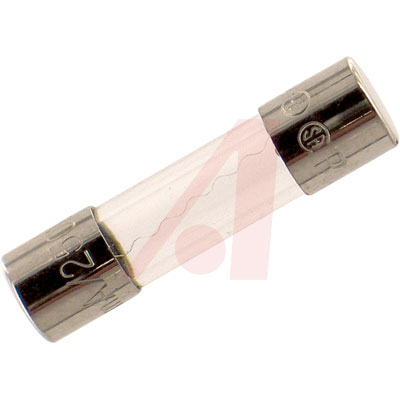

235系列， 5 ×20毫米，快熔保险丝 235 Series, 5 x 20 mm, Fast-Acting Fuse

235 Series fast-acting glass fuses are designed to UL/CSA/ANCE 248 Standard.

.

*Agency Approvals:** UL listed, CSA Certified, Approved by METI from 1-5 amps. **Blow Time:** 110%, 4 hour minimum; 135%, 1 hour maximum; 200%, 5 seconds maximum.

艾睿:
A great alternative to a circuit breaker, this a miniature 0235005.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0235005.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from glass.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 5A; Dims 5x20mm; Glass; Cartridge; 125VAC; 0.018Ohms; Clip

Jameco:
Fuse 5A 125 Volt Fast Acting 2-Pin Bulk

Chip1Stop:
Fuse Miniature Fast Acting 5A 125V Holder Cartridge 5 X 20mm Glass Bulk CE/CSA/PSE/UL

Verical:
Fuse Miniature Fast Acting 5A 125V Holder Cartridge 5 X 20mm Glass Bulk CE/CSA/PSE/UL

Newark:
# LITTELFUSE  0235005.HXP  Fuse, Cartridge, 235 Series, 5 A, 125 V, 5mm x 20mm, 0.2" x 0.79", 10 kA
