0402 1.2 pF 50 V ±0.25 pF 容差 C0G/NP0 表面贴装 多层陶瓷电容

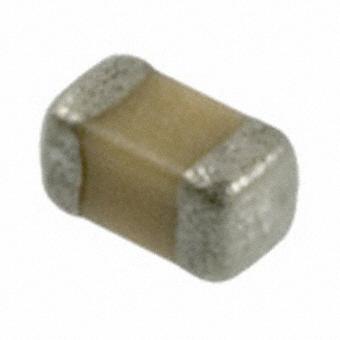

0402 1.2 pF 50 V ±0.25 pF Tolerance C0G/NP0 SMT Multilayer Ceramic Capacitor
得捷:
CAP CER 1.2PF 50V C0G/NP0 0402
艾睿:
Since this 04025A1R2CAT2A multilayer ceramic capacitor from AVX has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 1.2pF. This product is 1 mm long, 0.56Max mm tall and 0.5 mm deep.
安富利:
Cap Ceramic 1.2pF 50V C0G 0.25pF SMD 0402 125°C Paper T/R
Verical:
Cap Ceramic 1.2pF 50V C0G 0.25pF Pad SMD 0402 125C T/R
Newark:
# AVX 04025A1R2CAT2A SMD Multilayer Ceramic Capacitor, 0402 [1005 Metric], 1.2 pF, 50 V, ± 0.25pF, C0G / NP0
额定电压DC 50.0 V
电容 1.2 pF
容差 ±0.25 pF
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1.00 mm
宽度 0.5 mm
高度 0.56 mm
封装公制 1005
封装 0402
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±0.00 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
04025A1R2CAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
C1005C0G1H1R2C 东电化 | 完全替代 | 04025A1R2CAT2A和C1005C0G1H1R2C的区别 |
GRM1555C1H1R2CA01D 村田 | 类似代替 | 04025A1R2CAT2A和GRM1555C1H1R2CA01D的区别 |
GJM1555C1H1R2CB01J 村田 | 类似代替 | 04025A1R2CAT2A和GJM1555C1H1R2CB01J的区别 |
