三百十五分之三百一十三系列无铅3AG ， SLO- Blo®保险丝 313/315 Series Lead-Free 3AG, Slo-Blo® Fuse

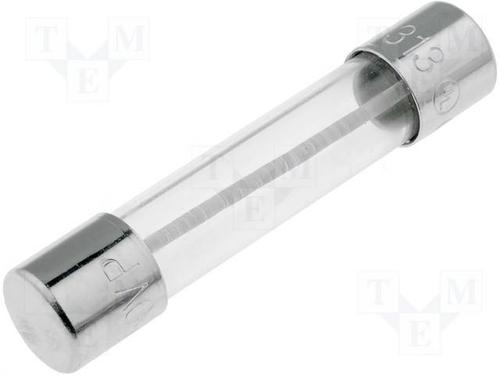

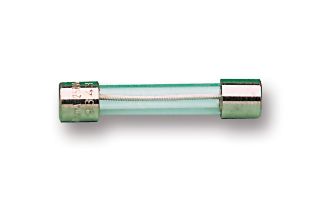

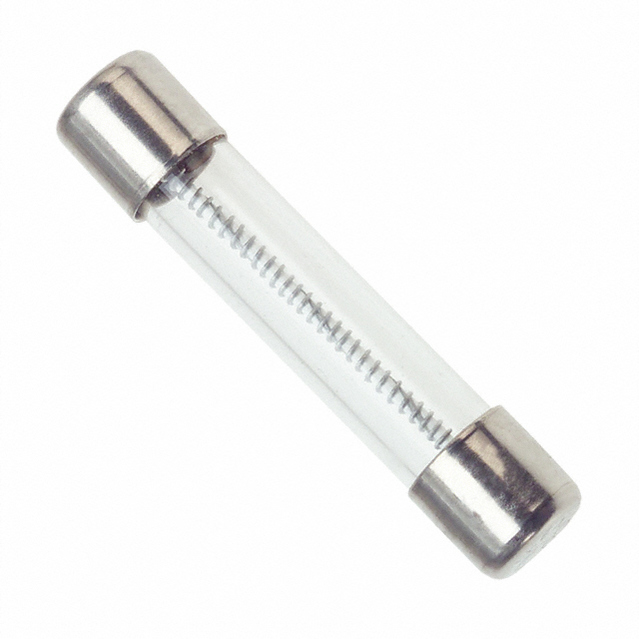

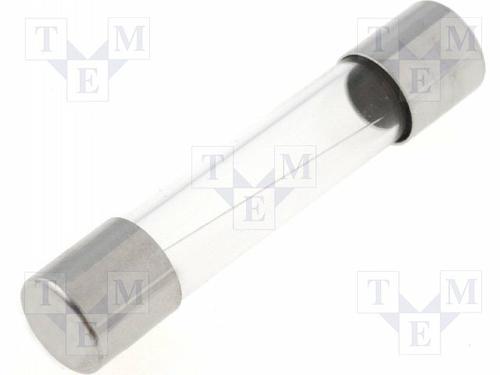

Be protected by adding a miniature fuse developed by . This device has a current rating of 4. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0313004.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 4 A
电阻 0.0308 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0313004.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
313004 力特 | 完全替代 | 0313004.MXP和313004的区别 |
0313004.HXP 力特 | 类似代替 | 0313004.MXP和0313004.HXP的区别 |
0315004.HXP 力特 | 类似代替 | 0313004.MXP和0315004.HXP的区别 |
