318分之312系列无铅3AG ，快熔保险丝 312/318 Series Lead-Free 3AG, Fast-Acting Fuse

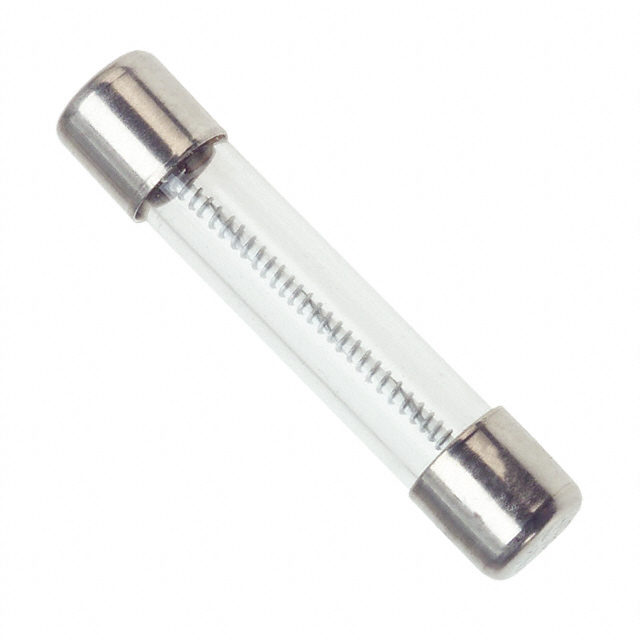

Be protected by adding a miniature fuse developed by . This device has a current rating of 1.6. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 031301.6MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 1.6 A
电阻 0.17 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
031301.6MXP Littelfuse 力特 | 当前型号 | 当前型号 |
031301.6HXP 力特 | 类似代替 | 031301.6MXP和031301.6HXP的区别 |
31301.6 力特 | 功能相似 | 031301.6MXP和31301.6的区别 |
