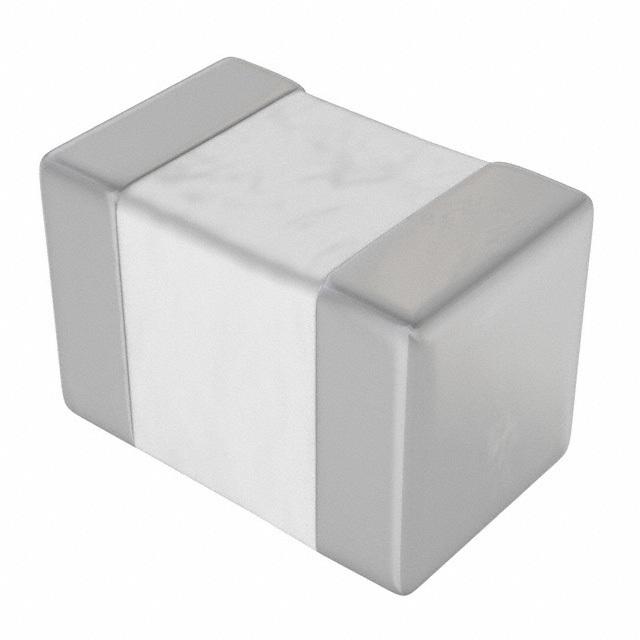

0805 3300 pF 50 V ±10 % 容差 X7R 表面贴装 多层陶瓷电容
3300pF ±10% 50V Ceramic Capacitor X7R 0805 2012 Metric
得捷:
CAP CER 3300PF 50V X7R 0805
贸泽:
多层陶瓷电容器MLCC - SMD/SMT 50V 3300pF X7R 0805 10% Tol FLEX
艾睿:
Cap Ceramic 0.0033uF 50V X7R 10% SMD 0805 FlexiTerm 125
安富利:
AVX has developed a range of multilayer ceramic capacitors designed for use in applications up to 150ºC. These 0805 size capacitors are manufactured with an X8R and an X8L dielectric material. X8R material has capacitance variation of ±15% between -55ºC and +150ºC. The X8L material has capacitance variation of ±15% between -55ºC to 125ºC and +15/-40% from +125ºC to +150ºC.The need for X8R and X8L performance has been driven by customer requirements for parts that operate at elevated temperatures. They provide a highly reliable capacitor with low loss and stable capacitance over temperature.They are ideal for automotive under the hood sensors, and various industrial applications. Typical industrial application would be drilling monitoring system. They can also be used as bulk capacitors for high temperature camera modules.
Verical:
Cap Ceramic 0.0033uF 50V X7R 10% Pad SMD 0805 FlexiTerm 125C T/R
Newark:
# AVX 08055C332KAZ2A SMD Multilayer Ceramic Capacitor, FLEXITERM®, 0805 [2012 Metric], 3300 pF, 50 V, ± 10%, X7R
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 3300 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.94 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Boardflex 敏感
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
08055C332KAZ2A AVX 艾维克斯 | 当前型号 | 当前型号 |
08055C332KAT2A 艾维克斯 | 完全替代 | 08055C332KAZ2A和08055C332KAT2A的区别 |
08055C332K4Z2A 艾维克斯 | 完全替代 | 08055C332KAZ2A和08055C332K4Z2A的区别 |
08055C332KAT4A 艾维克斯 | 完全替代 | 08055C332KAZ2A和08055C332KAT4A的区别 |
