08052A470JAT2A

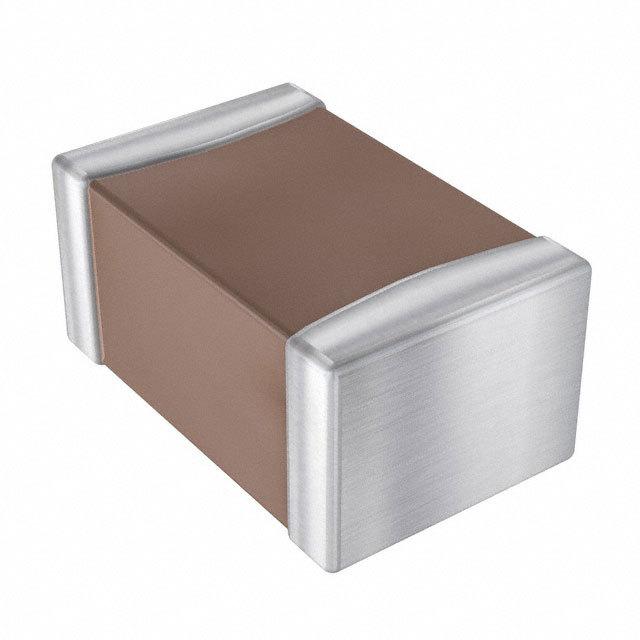

AVX  08052A470JAT2A  多层陶瓷电容器, 表面贴装, 47 pF, ± 5%, C0G / NP0, 200 V, 0805 [2012 公制]

The multilayer ceramic capacitors with EIA class I, C0G NP0 dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.

.

Capacitance value ranges from 0.5pF to 0.1µF

.

EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available

.

Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V

.

±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance

.

Nickel Ni and tin Sn plated terminations

.

Load life of 1000h at 125˚C

.

Operating temperature range from -55˚C to 125˚C
