100 pF 50 V U2J 5 % 容差 0603 多层陶瓷电容

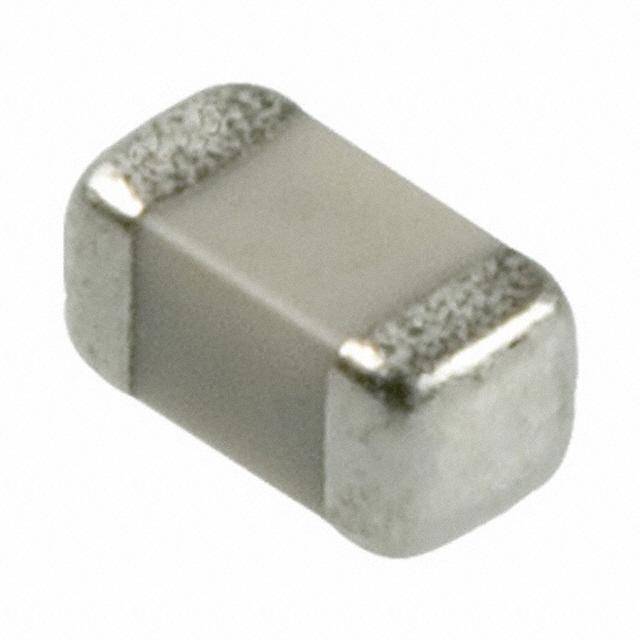

100pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 100PF 50V C0G/NP0 0603
艾睿:
This 06035U101JAT2A multilayer ceramic capacitor from AVX offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. Its capacitance value is 100pF. This product is 1.52 mm long, 0.91Max mm tall and 0.76 mm deep.
安富利:
C0G NP0 chip capacitors specially designed for “Ultra” low ESR for applications in the communications market. Max ESR and effective capacitance are met on each value producing lot to lot uniformity. Sizes available are EIA chip sizes 0402, 0603, 0805, and 1210.
Newark:
# AVX 06035U101JAT2A Capacitor, RF, Low ESR, 100 pF, 50 V, U Series, ± 5%, 125 °C
额定电压DC 50.0 V
电容 100 pF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.81 mm
高度 0.91 mm
封装公制 1608
封装 0603
材质 NP0/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
06035U101JAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
C0603C101J5GAL7867 基美 | 类似代替 | 06035U101JAT2A和C0603C101J5GAL7867的区别 |
CL10C101JB8NCNC 三星 | 类似代替 | 06035U101JAT2A和CL10C101JB8NCNC的区别 |
AP035A101JQT2A 艾维克斯 | 功能相似 | 06035U101JAT2A和AP035A101JQT2A的区别 |
