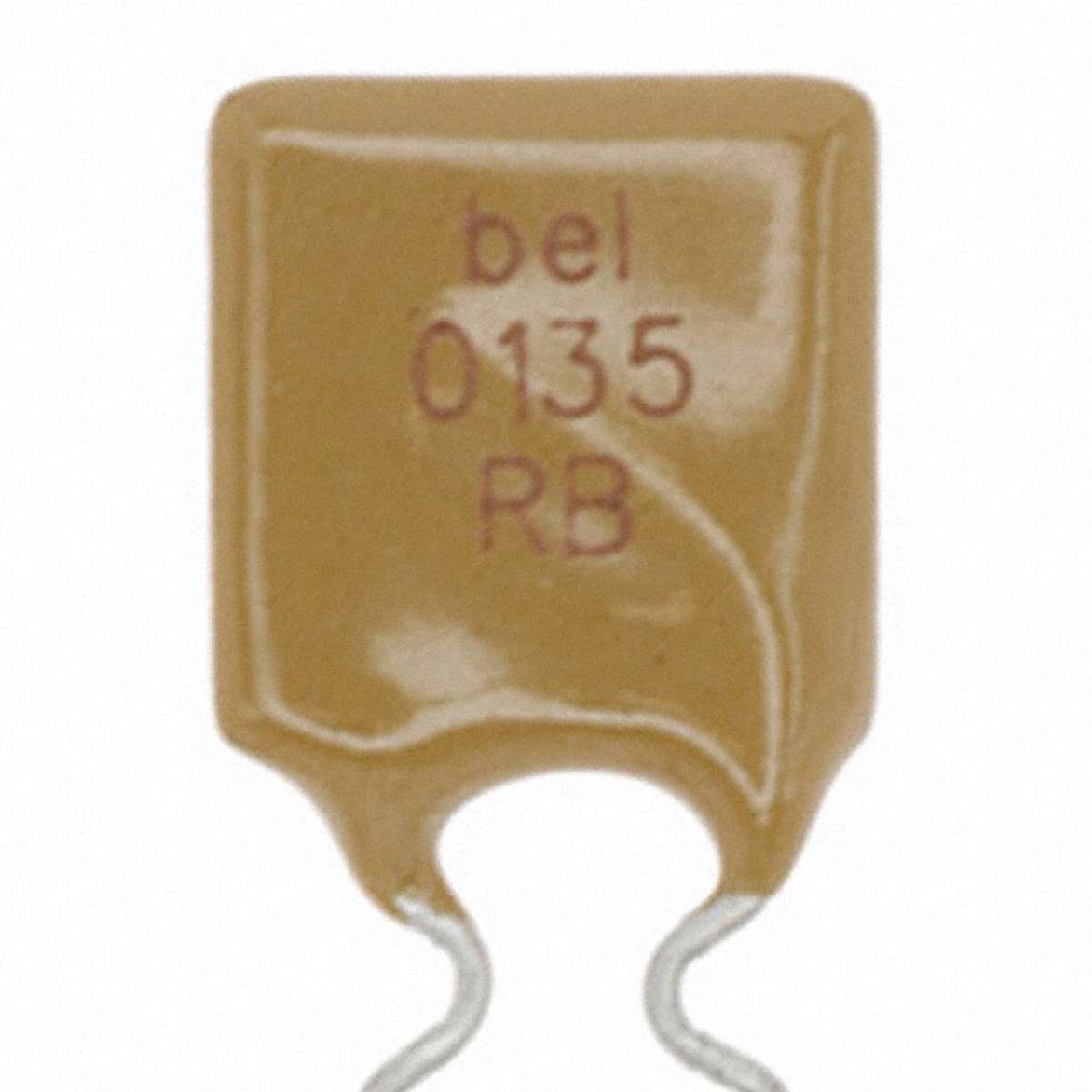

自恢复保险丝—PPTC
聚合物 PTC 自恢复 30V Ih 通孔 径向，圆片式
得捷:
PTC RESET FUSE 30V 1.35A RADIAL
立创商城:
0ZRB0135FF1E
贸泽:
自恢复保险丝—PPTC
艾睿:

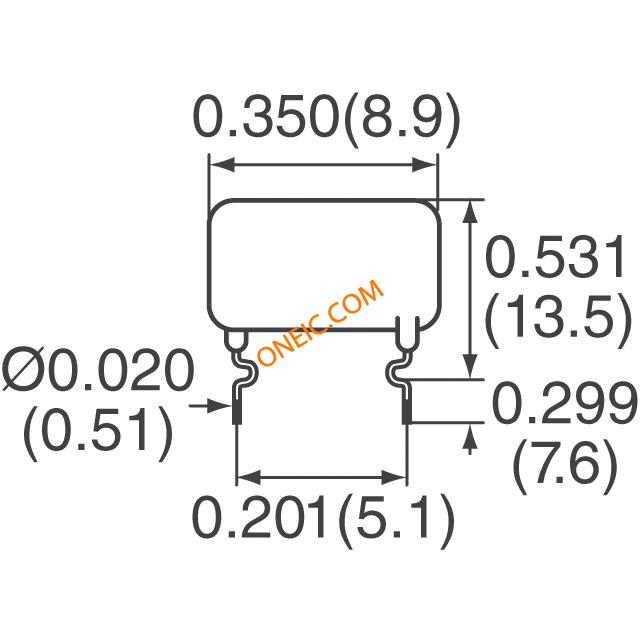

An automatically resetting fuse like this 0ZRB0135FF1E PTC resettable fuse from Bel Fuse is ideal for quickly restoring protected equipment into operation after a fuse burns out. This part has a lead diameter of 0.51 mm. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product&s;s terminal pitch is 5.1typ mm. This product is 8.9Max mm long, 13.5Max mm tall and 3Max mm deep.
安富利:
PTC Resettable Fuse 40A 30VDC Bulk
Chip1Stop:
PTC Resettable Fuse 1.35Ahold 2.7Atrip 30VDC 40A 0.8W 0.04Ohm Radial 8.9 X 3 X 13.5mm Bulk
跳闸时间 7.3 s
耗散功率 0.8 W
保持电流 1.35 A
跳闸电流 2.7 A
额定电流Max 40 A
保持电流Max 1.35 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 8.9 mm
宽度 3 mm
高度 13.5 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZRB0135FF1E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
RUE135 力特 | 类似代替 | 0ZRB0135FF1E和RUE135的区别 |
