0468003.WR

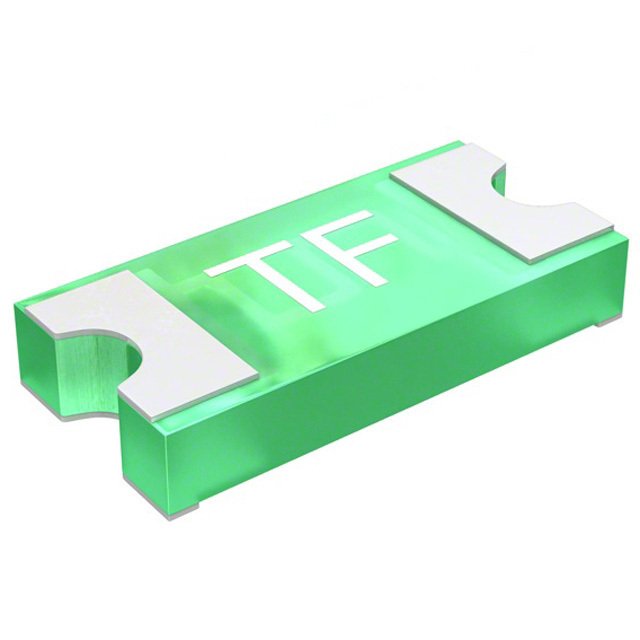

0468003.WR图片1
0468003.WR图片2
0468003.WR图片3
0468003.WR图片4
0468003.WR概述

表面贴装保险丝薄膜\u003e 1206尺寸\u003e Slo-Blo保险丝\u003e 468系列 Surface Mount Fuses Thin Film > 1206 Size > Slo-Blo > 468 Series

A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a maximum power dissipation of 0.2189 W. This device has a current rating of 3. Its maximum power dissipation is 0.2189 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 90 °C. It has 2 terminals. The 0468003.WR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep. Its fuse is made from epoxy. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.

0468003.WR中文资料参数规格
技术参数

额定电压DC 32 V

额定电压AC 32 V

额定电流 3 A

耗散功率 0.2189 W

工作温度Max 90 ℃

工作温度Min -55 ℃

耗散功率Max 0.2189 W

额定电压 32 V

额定电压DC Max 32 V

额定电压AC Max 32 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 3216

封装 1206

外形尺寸

长度 3.18 mm

宽度 1.52 mm

高度 0.58 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0468003.WR
型号: 0468003.WR
描述:表面贴装保险丝薄膜\u003e 1206尺寸\u003e Slo-Blo保险丝\u003e 468系列 Surface Mount Fuses Thin Film > 1206 Size > Slo-Blo > 468 Series
替代型号0468003.WR
型号/品牌 代替类型 替代型号对比

0468003.WR

Littelfuse 力特

当前型号

当前型号

0468003.NR

力特

完全替代

0468003.WR和0468003.NR的区别
