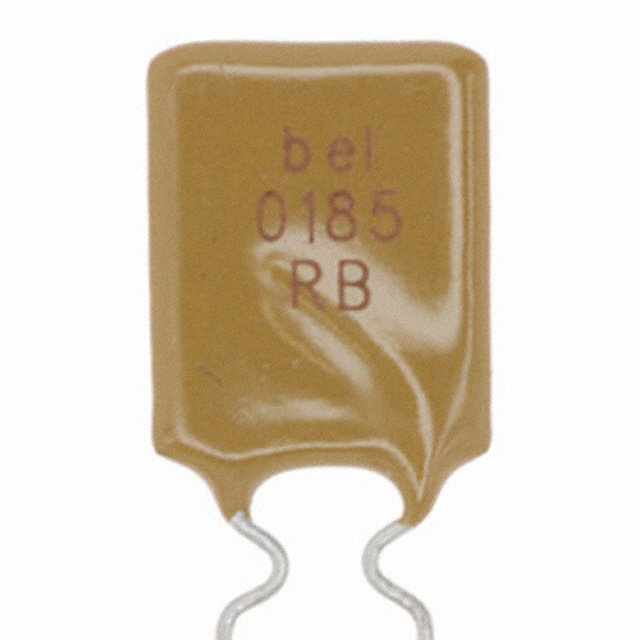

PTC Resettable Fuse 1.85Ahold 3.7Atrip 30VDC 40A 1W 0.03Ω Radial 10.2 X 3 X 15.7mm Bulk
Avoid constantly replacing burned out fuses with this PTC resettable fuse from Bel Fuse. This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1typ mm. This product is 10.2Max mm long, 15.7Max mm tall and 3Max mm deep.
跳闸时间 8.7 s
耗散功率 1 W
电阻 0.09 Ω
保持电流 1.85 A
跳闸电流 3.7 A
额定电流Max 40 A
保持电流Max 1.85 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 10.2 mm
宽度 3 mm
高度 15.7 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
