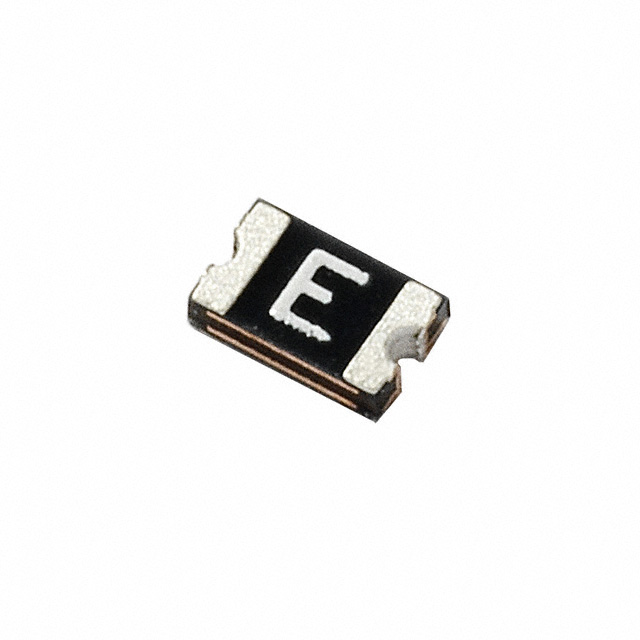

PTC Resettable Fuse 1.1Ahold 2Atrip 6VDC 100A 0.8W 0.1s 0.05Ω SMD Solder Pad 0805 T/R
Avoid delays in resuming normal operation with this PTC resettable fuse from . This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 2.2Max mm long, 1.4Max mm tall and 1.5Max mm deep.
跳闸时间 100 ms
耗散功率 0.8 W
保持电流 1.1 A
跳闸电流 2 A
额定电流Max 100 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.4 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
