225分之224系列无铅2AG ，快熔型 224/225 Series Lead-Free 2AG, Fast-Acting

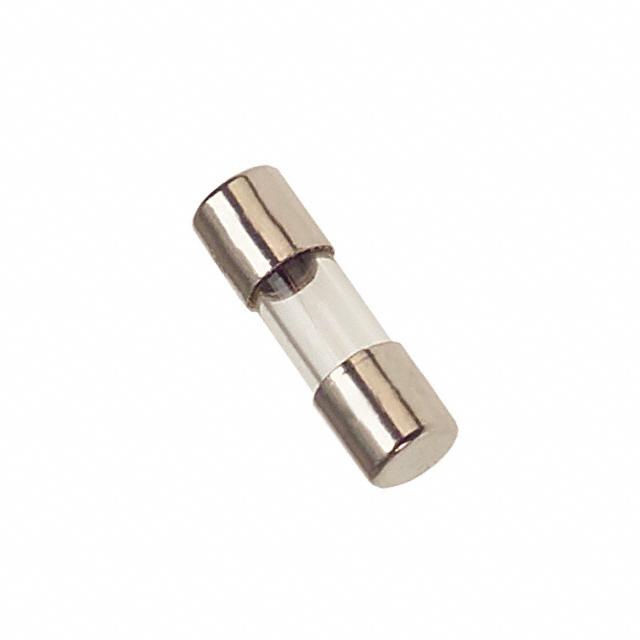

Be protected by adding a subminiature fuse developed by . This device has a current rating of 3.5. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 022503.5HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 14.48 mm long with a diameter of 4.5 mm. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125 VDC.
额定电压DC 125 V
额定电压AC 250 V
额定电流 3.5 A
电阻 0.0258 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压DC Max 125 V
额定电压AC Max 250 V
引脚数 2
封装 2AG, 5mm x 15mm
长度 14.48 mm
直径 4.50 mm
封装 2AG, 5mm x 15mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
