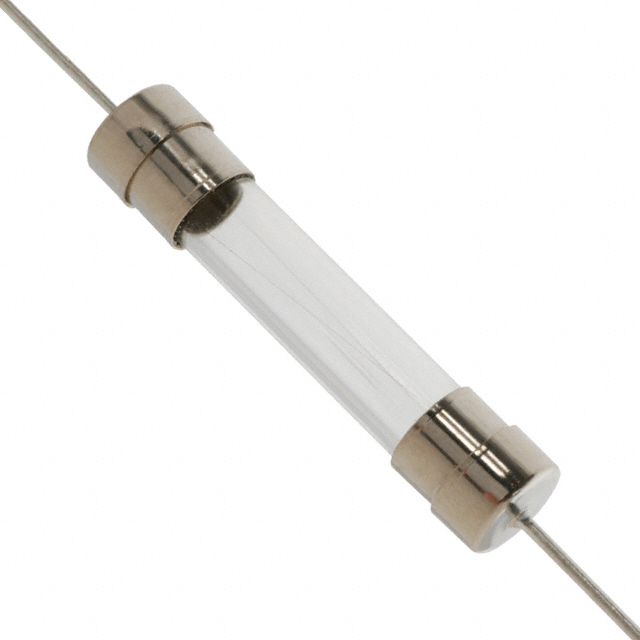

318 系列 快熔型 250 V 4 A 32.72 x 6.99 mm 轴向引线 玻璃管 保险丝
Be protected by adding a miniature fuse developed by . This device has a current rating of 1. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0318001.HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 32.72 mm long with a diameter of 6.99 mm. Its fuse is made from glass.
额定电压DC 250 V
额定电压AC 250 V
额定电流 1 A
电阻 0.19 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.385 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
