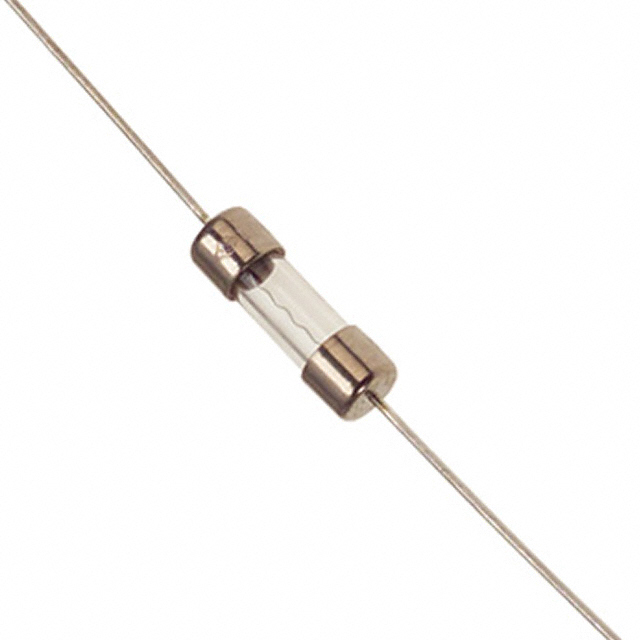

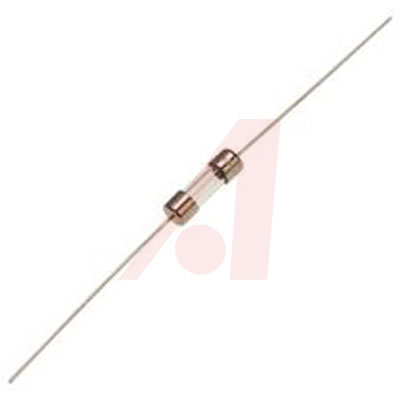

225分之224系列无铅2AG ,快熔型 224/225 Series Lead-Free 2AG, Fast-Acting
The 2AG fuse provides the same performance characteristics as the universal standard 3AG design in less than one-third the space. These subminiature fuses offer top quality, reliability and space-saving protection for your new designs. Available with pigtail leads for direct soldering or for use with #111501 mating PCB fuse clips. The 2AG Series is UL and CSA Approved.
贸泽:
Cartridge Fuses 250V 2A Fast Acting
艾睿:
A great alternative to a circuit breaker, this a subminiature 0224002.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0224002.HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125 VDC. Its fuse is made from glass. This product is 14.48 mm long with a diameter of 4.7 mm.
Allied Electronics:
Fuse; Submin; Fast Acting; 2A; Sz 2AG; Supplemental; Dims 0.184x0.57"; Glass; Axial
Chip1Stop:
Fuse Subminiature Fast Acting 2A 250V Axial 5 X 15mm Glass Bulk
Verical:
Fuse Subminiature Fast Acting 2A 250V Axial 5 X 15mm Glass Bulk CE/CSA/PSE/UL
Newark:
# LITTELFUSE 0224002.HXP Fuse, Cartridge, 224 Series, 2 A, 250 V, 5mm x 15mm, 100 A
额定电压DC 125 V
额定电压AC 250 V
额定电流 2 A
电阻 0.049 Ω
电阻DC) 0.049 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压DC Max 125 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2

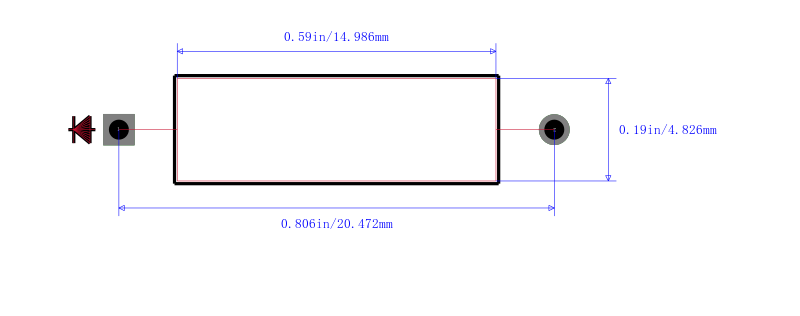

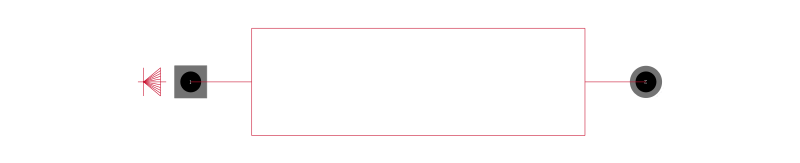

封装 2AG, 5mm x 15mm Axial
长度 14.48 mm
直径 4.70 mm
封装 2AG, 5mm x 15mm Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0224002.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0224002.MXP 力特 | 完全替代 | 0224002.HXP和0224002.MXP的区别 |
0224002.DRT1P 力特 | 完全替代 | 0224002.HXP和0224002.DRT1P的区别 |
