0314007.HXP

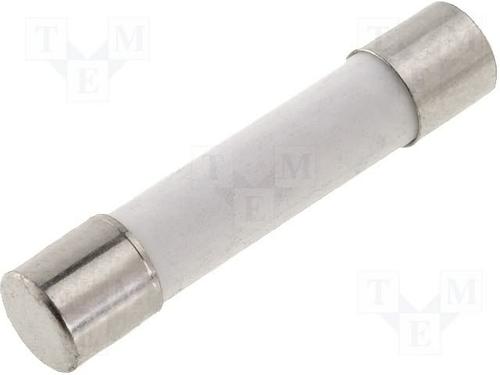

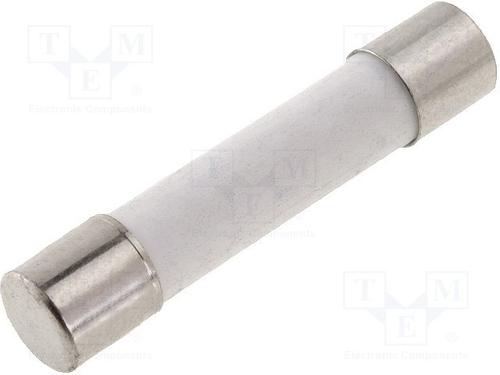

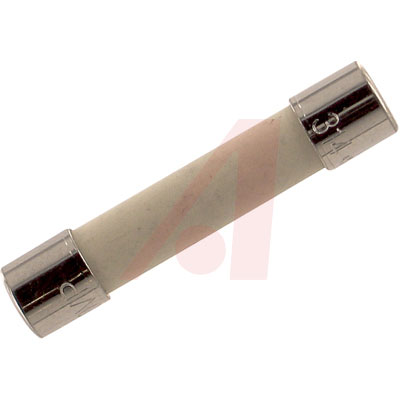

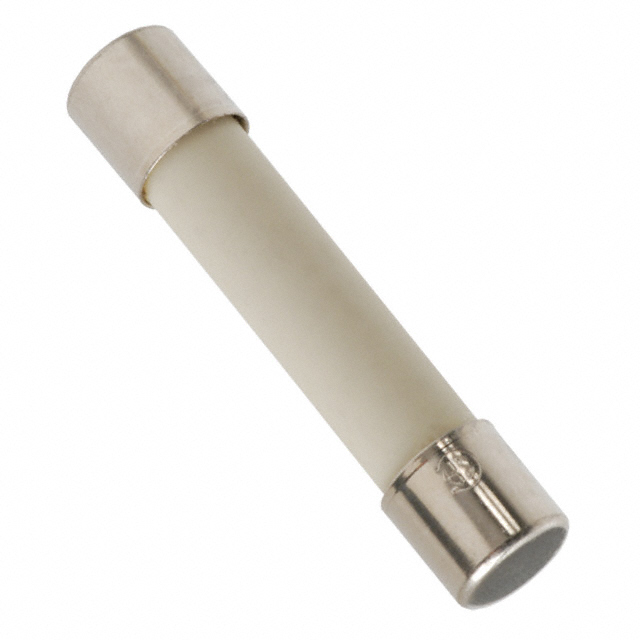

314 系列 快熔型 250 V 7 A 6.4 x 32 mm 陶瓷管 保险丝

.

*Blow Time:** 100% four hour minimum; 135% one hour maximum; 200% 15 second maximum 1⁄8-12 A; 30 second maximum 15-30 A. 11⁄4 × 1⁄4". UL listed thru 15 amps. Certified by CSA thru 15 amps. UL recognized, 20-30 A.

贸泽:
保险丝管 250V 7A Fast Acting

艾睿:
Be protected by adding a miniature 0314007.HXP fuse developed by Littelfuse. This device has a current rating of 7. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0314007.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from ceramic. This product is 31.75 mm long with a diameter of 6.35 mm. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 7A; 3AB; Supplemental; 0.25x1.25 in..; Ceramic; 250VAC

Chip1Stop:
Fuse Miniature Fast Acting 7A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk

TME:
Fuse: fuse; quick blow; ceramic; 7A; 250VAC; 6,3x32mm; brass

Verical:
Fuse Miniature Fast Acting 7A 250V Holder Cartridge 6.35 X 31.75mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

Newark:
# LITTELFUSE  0314007.HXP  Fuse, Cartridge, 314 Series, 7 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 750 A
